Generator and A/C Drive Belt
WARNING: This page is about a different variant/trim than selected.
NOTE:
- The generator and A/C drive belt deflection/tension inspection is not necessary because of the use of the drive belt auto tensioner.

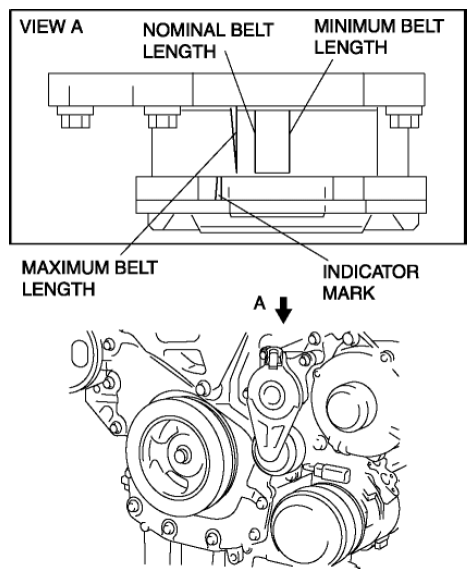

- Verify that the drive belt auto tensioner indicator mark does not exceed the maximum belt length.
- If it exceeds the maximum belt length, replace the generator and A/C drive belt. (See DRIVE BELT REMOVAL/INSTALLATION .)
- Visually inspect the generator and A/C drive belt for damage and cracks.
- If there is generator and A/C drive belt damage and cracks, replace the generator and A/C drive belt. (See DRIVE BELT REMOVAL/INSTALLATION .)
