Cylinder Head Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Loosen the cylinder head bolts in several passes in the order shown.

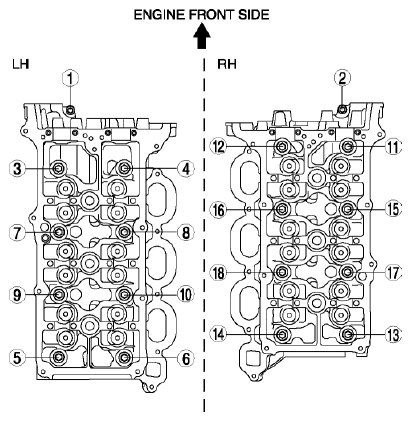

    Fig 1: Identifying Cylinder Head Bolt Removal Sequence
    G08140338
