Cylinder Head Installation Note
WARNING: This page is about a different variant/trim than selected.
NOTE:
- The cylinder head bolts must be replaced with new bolts. The bolts are torque-to-yield designed and cannot be reused.

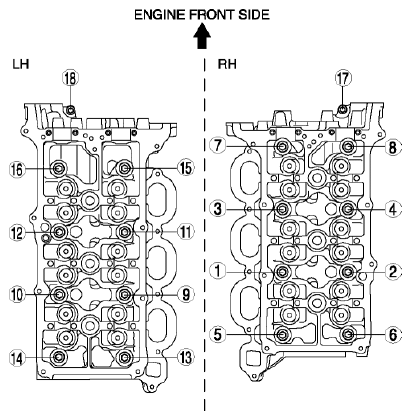

- Tighten the cylinder head bolts in the order in 6 steps in the order shown in the figure.TIGHTENING TORQUE
Step Installation position Tightening torque 1 1-16 20 N.m {2.0 kgf.m, 15 ft.lbf} 2 1-16 35 N.m {3.6 kgf.m, 26 ft.lbf} 3 1-16 90 ° 4 1-16 90 ° 5 1-16 90 ° 6 17, 18 9-11 N.m {92-112 kgf.cm, 80-97 in.lbf}
