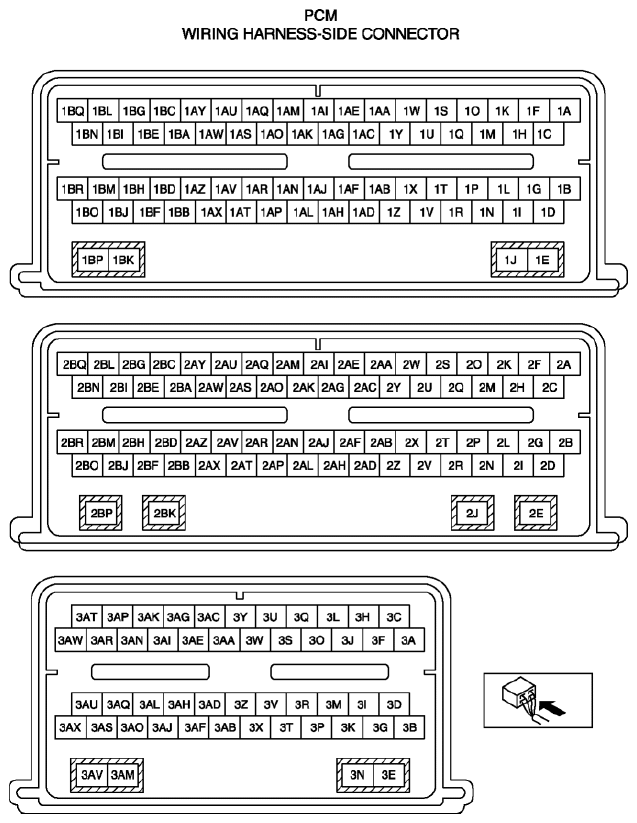

Typical Diagnostic Reference Values
WARNING: This page is about a different variant/trim than selected.
| Sensors/Inputs |
Measured/PID Values |
Units Measured/PID |
| KOEO |
Hot Idle |
48 KM/H (30 MPH) |
89 KM/H (55 MPH) |
| APP1 |
4.1 |
4.2 |
3.9 |
3.7 |
DCV |
| APP2 |
1.6 |
1.7 |
1.9 |
2.1 |
DCV |
| FPM |
OFF |
ON |
ON |
ON |
ON/OFF |
| MAF |
0 |
0.62 |
1.06 |
1.44 |
DCV |
| IAT |
1.89/114.8 (K) |
2.13/104 (K) |
3.32/59 (K) |
3.37/57.2 (K) |
DCV/DEG F |
| FTP |
2.55/-0.01 |
2.53/-0.02 |
2.49/-0.03 |
2.28/-0.08 |
DCV/PSI |
| BOO |
OFF |
ON (E) |
OFF |
OFF |
ON/OFF |
| BPA |
OFF |
ON (E) |
OFF |
OFF |
ON/OFF |
| ACP_PRESS |
1.46/47.99 |
1.48/51.98 |
1.42/41.99 |
1.42/41.99 |
DCV/PSI |
| PSP |
LOW |
HIGH (I) |
LOW |
LOW |
HIGH/LOW |
| O2S12 |
(L) |
(D) |
(D) |
(D) |
DCV |
| O2S22 |
(L) |
(D) |
(D) |
(D) |
DCV |
| HTRCM12 |
582 |
582 |
582 |
582 |
mA |
| HTRCM22 |
613 |
613 |
613 |
613 |
mA |
| GENMON |
0 |
50.78 |
31.25 |
31.25 |
% |
| O2S11 |
(L) |
switching (C) |
switching (C) |
switching (C) |
DCV/RICH-LEAN |
| O2S21 |
0 |
switching (C) |
switching (C) |
switching (C) |
DCV/RICH-LEAN |
| CHT |
0.61/192.2 |
0.64/190.4 |
0.71/181.4 |
0.69/183.2 |
DCV/DEG F |
| KNOCK 1 |
26590 |
27310 |
32090 |
40910 |
N/A |
| TP2 |
1.25/25.1 |
0.85/16.8 |
0.82/16 |
1.26/25.1 |
DCV/% |
| TP1 |
4.1/16.9 |
4.4/12.2 |
4.3/12.9 |
4.2/14.9 |
DCV/% |
| HTRCM11 |
1.43 |
1.43 |
1.43 |
1.43 |
AMPS |
| HTRCM11 |
1.49 |
1.49 |
1.49 |
1.49 |
AMPS |
| ACCS |
OFF |
ON (A) |
OFF |
OFF |
ON/OFF |
| BARO |
14.24/155.8 |
14.24/155.8 |
14.24/155.8 |
14.24/155.8 |
PSI/HZ |
| B+ |
VBAT |
VBAT |
VBAT |
VBAT |
DCV |
| APP |
0 |
0 |
19.5 |
24.5 |
% |
| CPP/PNP |
NEUTRAL |
NEUTRAL |
DRIVE |
DRIVE |
NEUTRAL/DRIVE |
| DECHOKE |
YES |
NO |
NO |
NO |
YES/NO |
| ETC_ACT |
7.25 |
1.87 |
5.68 |
7.81 |
DEG |
| ETC_DSD |
7.62 |
1.94 |
5.66 |
7.81 |
DEG |
| FLI |
13.58 (H) |
13.59 (H) |
23.15 (H) |
28 (H) |
% |
| LOAD |
49 (L) |
17 |
21 |
29 |
% |
| MISFIRE |
NO |
NO |
NO |
NO |
YES/NO |
| O2BANK1 |
VARIES |
VARIES |
VARIES |
VARIES |
RICH/LEAN |
| O2BANK2 |
VARIES |
VARIES |
VARIES |
VARIES |
RICH/LEAN |
| RPM |
0 |
640 |
1146 |
1675 |
RPM |
| VSS |
0 |
0 |
30 |
55 |
MPH |
| Actuators/Outputs |
Measured/PID Values |
Units Measured/PID |
| KOEO |
Hot Idle |
48 KM/H (30 MPH) |
89 KM/H (55MPH) |
| EVMV |
0/OFF |
155/VARYING |
553/VARYING |
905/VARYING |
mA/OFFVARYING |
| EVAPCV |
0/OFF |
0/OFF |
0/OFF |
0/OFF |
%/ON-OFF |
| FP |
OFF |
ON |
ON |
ON |
ON/OFF |
| WAC/ACCR |
OFF |
OFF |
OFF |
OFF |
ON/OFF |
| PCVHC |
0 |
0 |
0 |
0 |
% |
| SPKDUR_6 |
0 |
2.31 |
1.53 |
1.56 |
ms |
| SPKDUR_5 |
0 |
2.12 |
1.62 |
1.34 |
ms |
| SPKDUR_4 |
0 |
2.31 |
1.87 |
1.59 |
ms |
| GENCMD |
3.79 |
0 (Q) |
0 (Q) |
0 (Q) |
% |
| SPKDUR_3 |
0 |
2.12 |
1.75 |
1.5 |
ms |
| SPKDUR_2 |
0 |
2.5 |
1.75 |
1.5 |
ms |
| SPKDUR_1 |
0 |
2.31 |
1.78 |
1.9 |
ms |
| HTR12 |
OFF |
ON |
ON |
ON |
ON/OFF |
| HTR22 |
OFF |
ON |
ON |
ON |
ON/OFF |
| VCTADV |
0 |
0.5 |
0.5 |
-40.44 |
DEG |
| VCTADV2 |
0 |
0.06 |
0.12 |
-40 |
DEG |
| HTR11 |
ON (O) |
ON |
ON |
ON |
ON/OFF |
| HTR21 |
ON (O) |
ON |
ON |
ON |
ON/OFF |
| EGR_EVAL |
YES |
YES |
YES |
YES |
YES/NO |
| EVAP020C |
NO |
NO |
NO |
NO |
YES/NO |
| EVAP020D |
ALLOW |
ALLOW |
ALLOW |
ALLOW |
ALLOW/DISALLOW |
| EVAP020R |
NOT READY |
NOT READY |
NOT READY |
NOT READY |
READY/NOT READY |
| EVAPSOAK |
NO |
YES |
YES |
YES |
YES/NO |
| EVAP_EVAL |
NO |
NO |
NO |
NO |
YES/NO |
| FANDC |
7.5 |
7.5 |
7.5 |
7.5 |
% |
| FANVAR |
0 |
29 |
29 |
0 |
% |
| FUELSYS |
OPEN LOOP |
CLOSED LOOP |
CLOSED LOOP |
CLOSED LOOP |
OPEN/CLOSED LOOP |
| LONGFT1 |
(L) |
(-)20-(+)20 |
(-)20-(+)20 |
(-)20-(+)20 |
% |
| LONGFT2 |
(L) |
(-)20-(+)20 |
(-)20-(+)20 |
(-)20-(+)20 |
% |
| MIL |
OFF |
OFF |
OFF |
OFF |
ON/OFF |
| SHRTFT1 |
(L) |
(-)10-(+)10 |
(-)10-(+)10 |
(-)10-(+)10 |
% |
| SHRTFT2 |
(L) |
(-)10-(+)10 |
(-)10-(+)10 |
(-)10-(+)10 |
% |
| SPARKADV |
31.25 |
25.5 |
47.5 |
42.5 |
DEG |
| STRT_RLY |
ENABLED |
DISABLED |
DISABLED |
DISABLED |
ENABLED/DISABLED |
| VCTADVERR |
0 |
-0.31 |
-1.56 |
0.43 |
DEG |
| VCTADVERR2 |
0 |
-0.31 |
-2.06 |
0.12 |
DEG |
| VCTDC |
0 |
0 |
0 |
80 |
% |
| VCTDC2 |
0 |
0 |
0 |
80 |
% |
| Other |
Measured/PID Values |
Units Measured/PID |
| KOEO |
Hot Idle |
48 KM/H (30 MPH) |
89 KM/H (55 MPH) |
| VPWR |
VBAT |
VBAT |
VBAT |
VBAT |
DCV |
