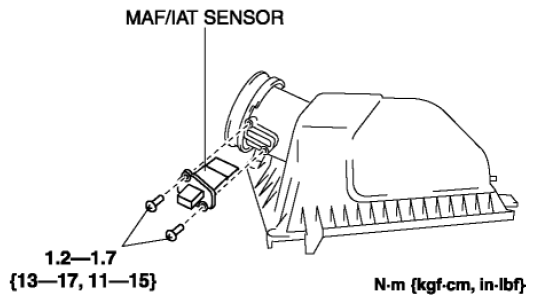

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor Removal/Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:
- The MAF sensor and IAT sensor cannot be removed as a single unit. When replacing the MAF sensor or IAT sensor, replace it together with the MAF/IAT sensor as a single unit.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZI 3.7 V6] .)
- Disconnect MAF/IAT sensor connector.
- Remove the MAF/IAT sensor.
- Install in the reverse order of removal.
