IAT Sensor Resistance

WARNING: This page is about a different variant/trim than selected.
IAT (°C {°F}) Resistance (kilohm)
10 {50} Approx. 58.75
20 {68} Approx. 37.30
30 {86} Approx. 24.27
60 {140} Approx. 7.70

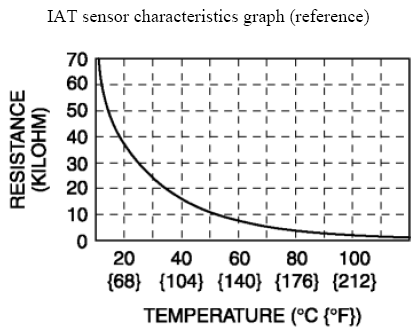

Fig 1: IAT Sensor Characteristics Graph
G08140814
