HO2S (LH) Removal/Installation
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZI 3.7 V6] .)
- Disconnect the HO2S (LH) connector.NOTE:
- If necessary, lubricate the HO2S (LH) with Penetrating and Lock Lubricant loosen to aid in removal.

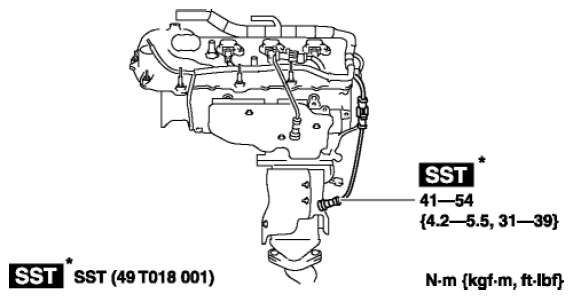

- Remove the HO2S (LH) using the SST
.
NOTE:
- Apply a light coat of anti-seize lubricant to the threads of the HO2S.
- Install in the reverse order of removal.
