Section 3 (Engine Control System [MZI 3.7 V6])
>>
Control System Wiring Diagram
Control System Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

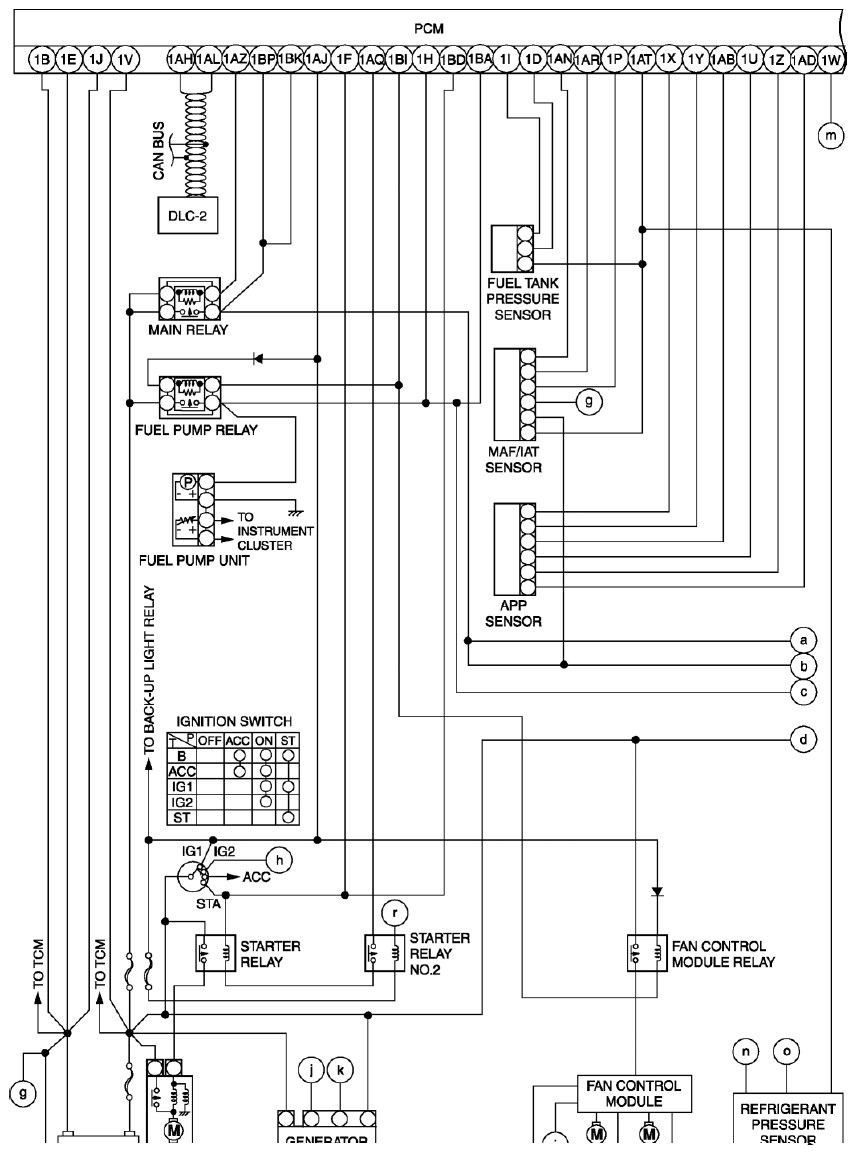

Fig 1: Control System Wiring Diagram - MZI 3.7 V6 (1 Of 3)

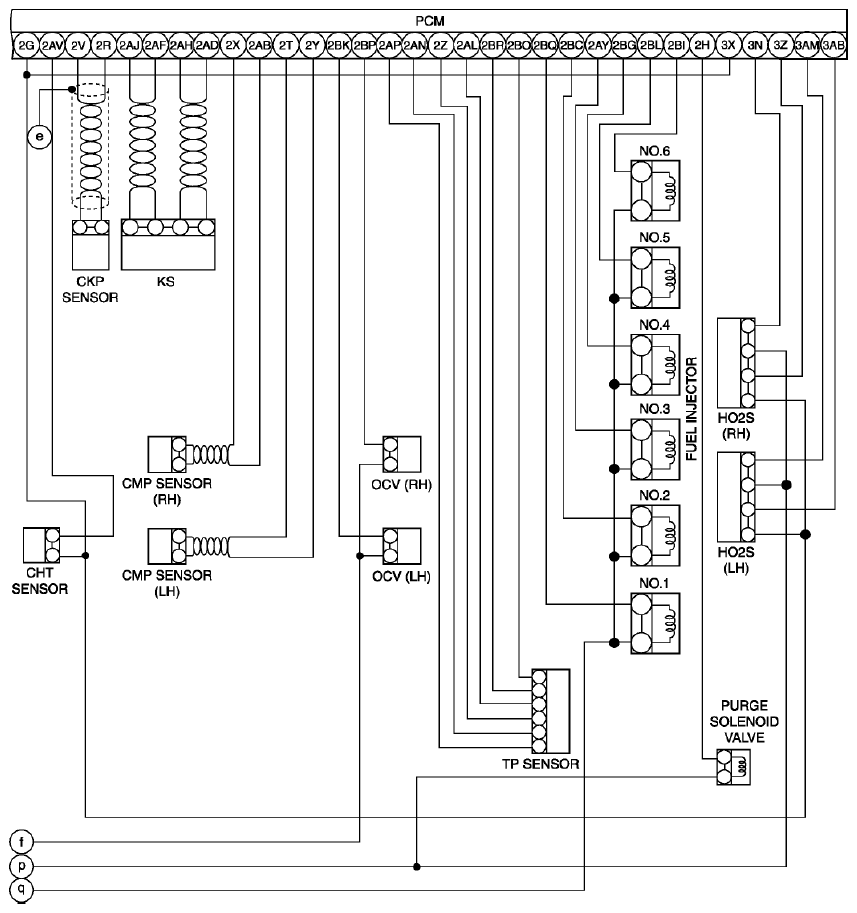

Fig 2: Control System Wiring Diagram - MZI 3.7 V6 (2 Of 3)

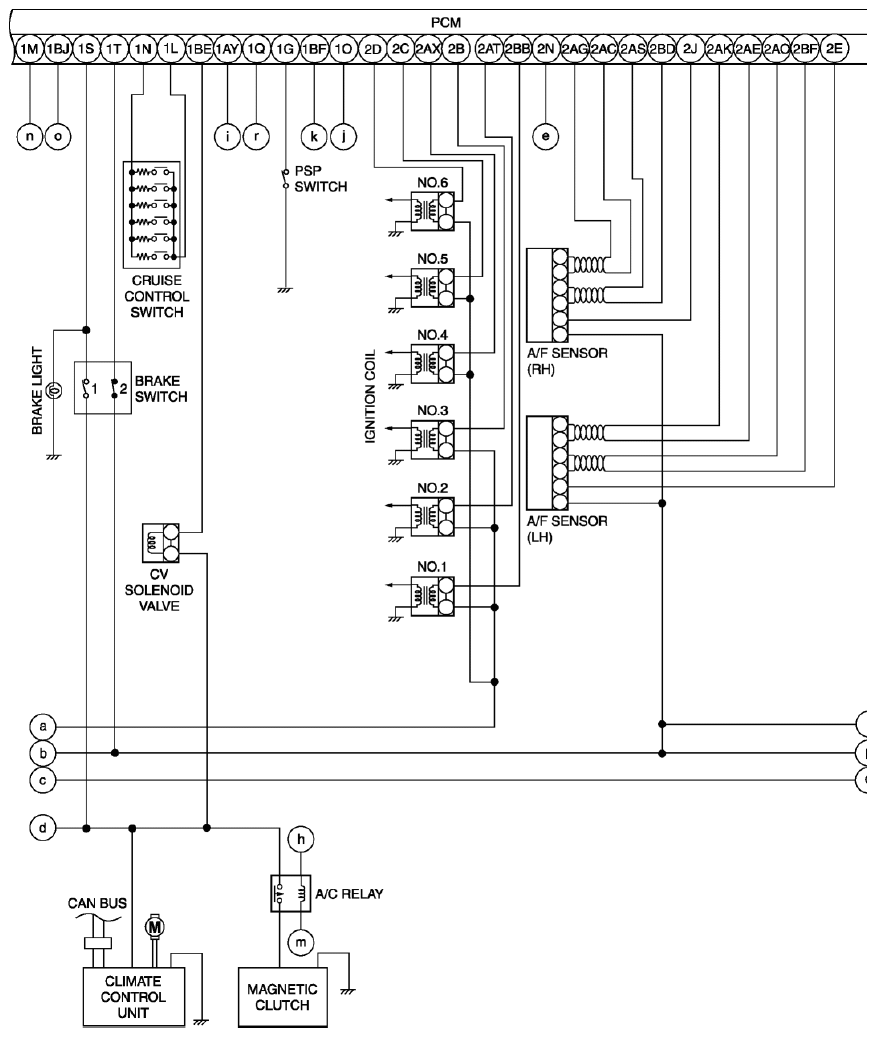

Fig 3: Control System Wiring Diagram - MZI 3.7 V6 (3 Of 3)
