A/F Sensor (LH) Removal/Installation
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZI 3.7 V6] .)
- Disconnect the A/F sensor (LH) connector.NOTE:
- If necessary, lubricate the A/F sensor with Penetrating and Lock Lubricant loosen to aid in removal.

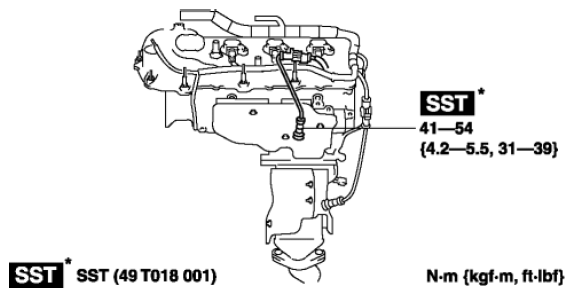

- Remove the A/F sensor (LH) using the SST
.
NOTE:
- Apply a light coat of anti-seize lubricant to the threads of the A/F sensor.
- Install in the reverse order of removal.
