DTC P2127:00: Notes

WARNING: This page is about a different variant/trim than selected.
DTC P2127:00 APP sensor No. 2 circuit low input
DETECTION CONDITION
  • APP sensor No. 2 is out of self-test range low.
POSSIBLE CAUSE
  • Connector or terminal malfunction
  • Short to ground circuit between APP sensor terminal A and PCM terminal 1Z
  • Short to ground circuit between APP sensor terminal B and PCM terminal 1U
  • APP sensor malfunction

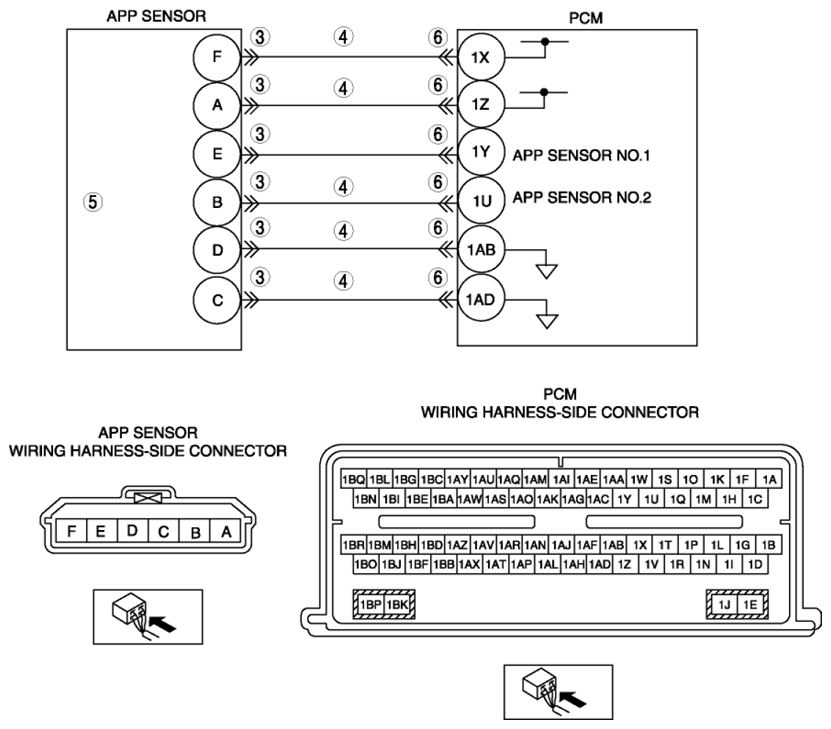

G08140189Courtesy of MAZDA MOTORS CORP.
