DTC P2122:00: Notes

WARNING: This page is about a different variant/trim than selected.

DTC P2122:00	APP sensor No. 1 circuit low input
DETECTION CONDITION	APP sensor No. 1 is out of self-test range low.

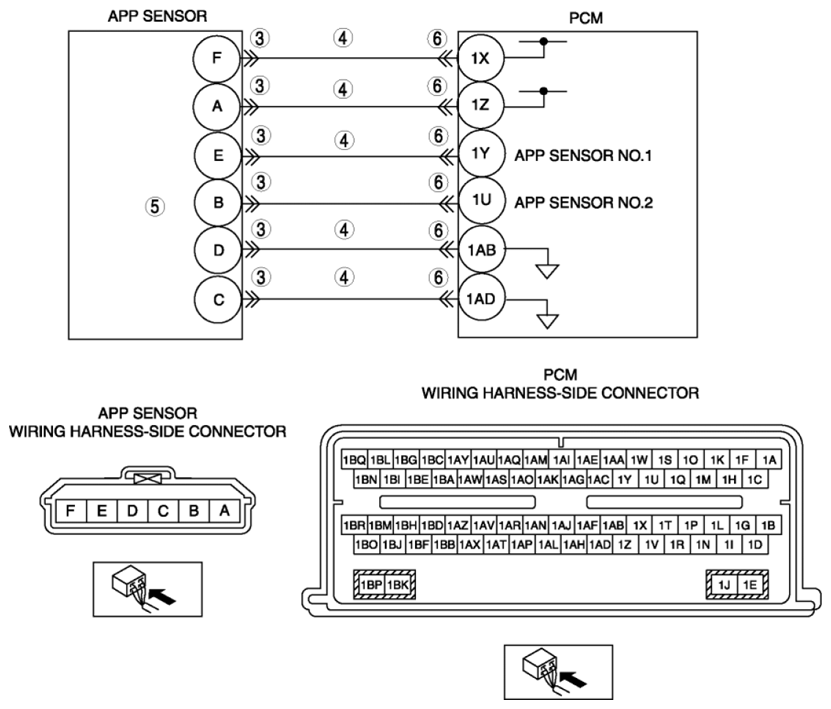

POSSIBLE CAUSE	Short to ground circuit between APP sensor terminal F and PCM terminal 1X Short to ground circuit between APP sensor terminal E and PCM terminal 1Y APP sensor malfunction Connector or terminal malfunction
Courtesy of MAZDA MOTORS CORP.
