DTC P2101:00: Notes

WARNING: This page is about a different variant/trim than selected.
DTC P2101:00 Throttle actuator circuit range/performance
DETECTION CONDITION
  • A PCM malfunction flag is set indicating the motor circuit is open, and may require cycling the key.
POSSIBLE CAUSE
  • Throttle body connector or terminal malfunction
  • PCM connector or terminal malfunction
  • Throttle actuator circuit are cross-wired
  • PCM malfunction

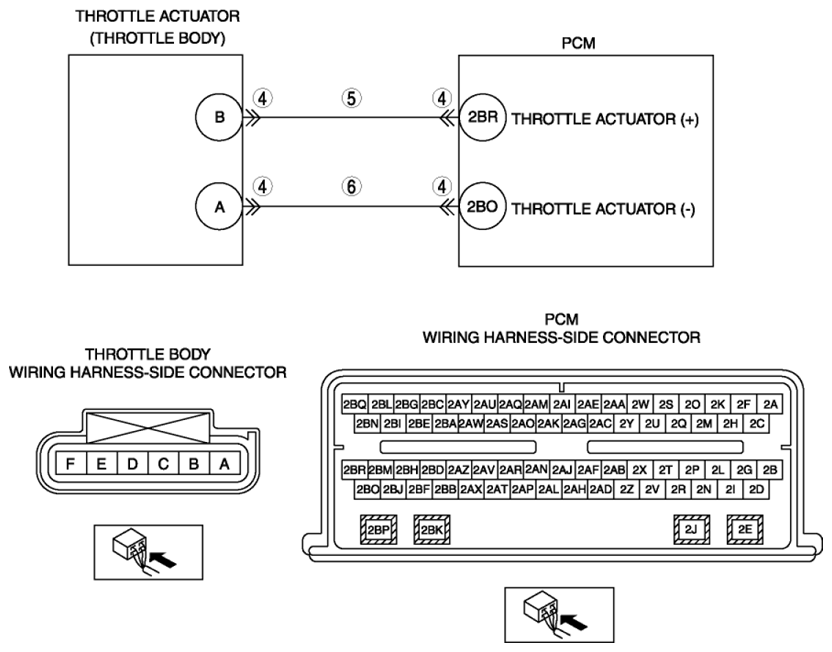

G08140183Courtesy of MAZDA MOTORS CORP.
