DTC P1703:00: Notes

WARNING: This page is about a different variant/trim than selected.
DTC P1703:00 Brake switch out of self-test range
DETECTION CONDITION
  • Indicates that during the KOEO self-test, the brake pedal position signal was high, or during the KOER self-test, the BPP signal did not cycle high and low.
POSSIBLE CAUSE
  • Brake switch mis-installation
  • Brake switch circuit malfunction
  • Brake switch malfunction
  • Connector or terminal malfunction

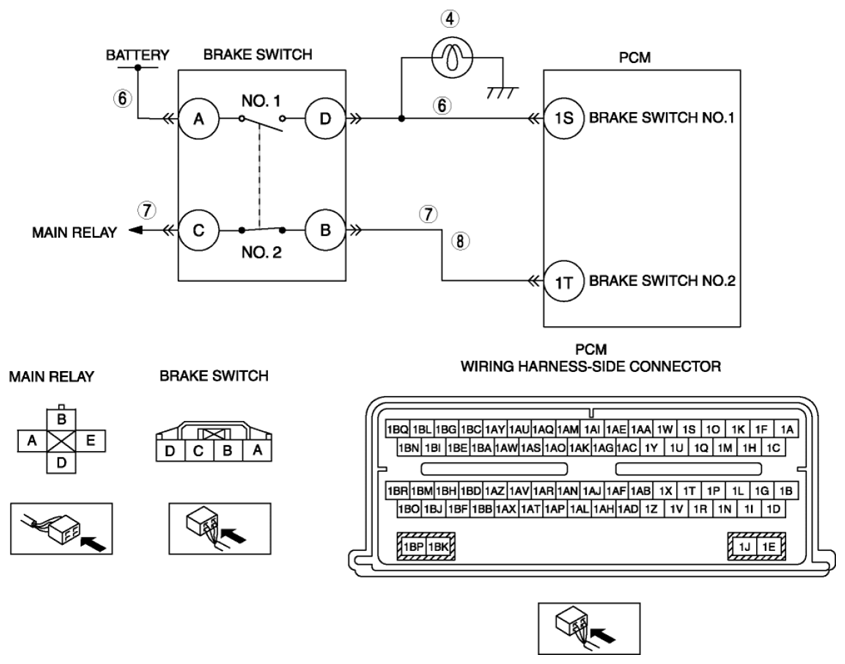

G08140182Courtesy of MAZDA MOTORS CORP.
