DTC P164A:00: Notes

WARNING: This page is about a different variant/trim than selected.
DTC P164A:00 A/F sensor (RH) positive current trim circuit performance
DETECTION CONDITION
  • A resistor is installed in the A/F sensor (RH) connector for part to part variance. The PCM determines the value of this resistor by taking multiple measurements of the resistor during each key on event. The PCM uses this value in order to compensate for the variance in the pumping current signal. The test fails if the PCM receives an inconsistent or erratic measurement of the resistor.
POSSIBLE CAUSE
  • Connector or terminal malfunction
  • A/F sensor (RH) malfunction

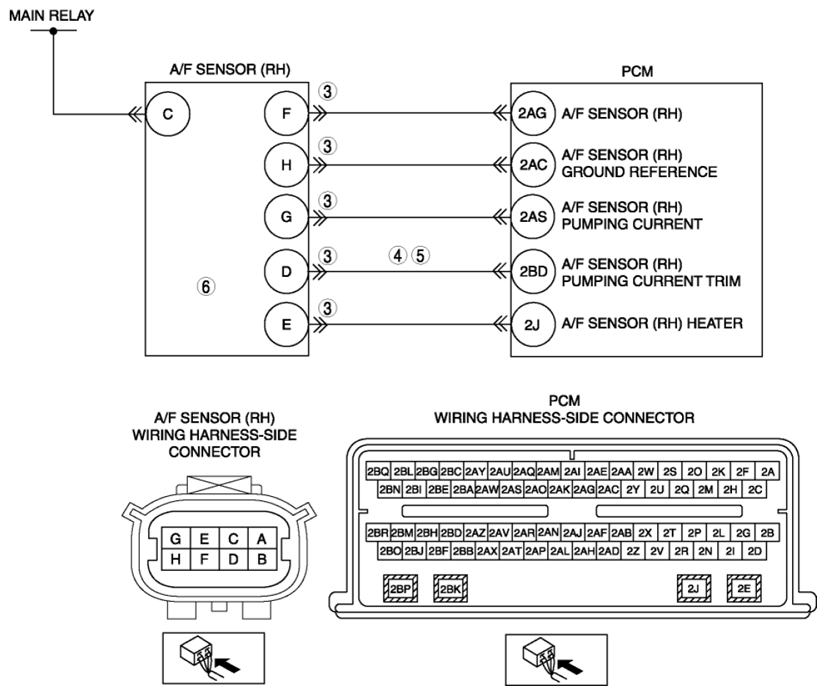

G08140179Courtesy of MAZDA MOTORS CORP.
