DTC P1290:00: Notes
WARNING: This page is about a different variant/trim than selected.
| DTC P1290:00 |
CHT sensor circuit low input |
| DETECTION CONDITION |
- Indicates a CHT sensor circuit short to ground.
|
| POSSIBLE CAUSE |

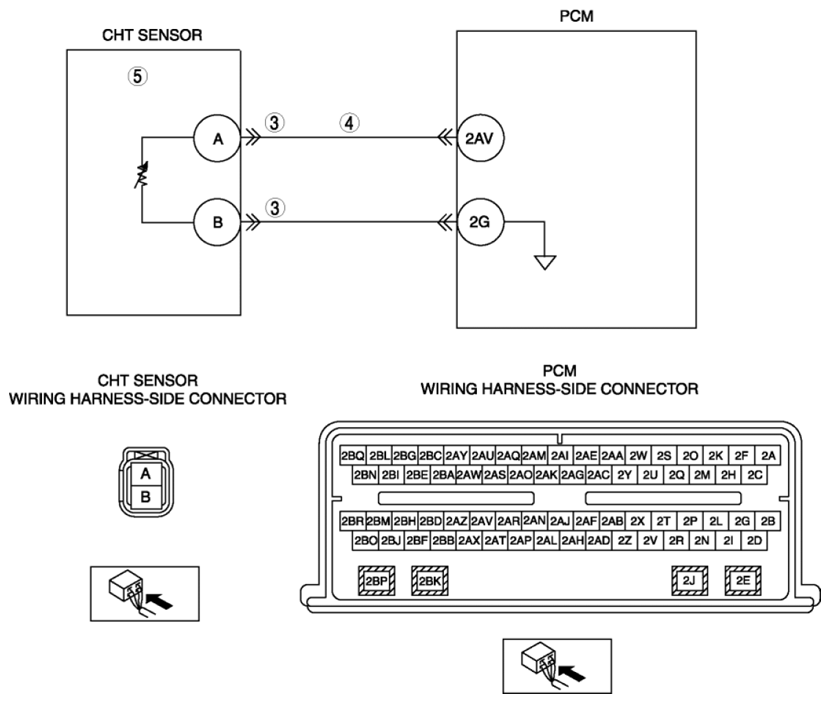

- Short to ground in wiring harness between CHT sensor terminal A and PCM terminal 2AV
- CHT sensor malfunction
- Connector or terminal malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
