DTC P1124:00: Notes

WARNING: This page is about a different variant/trim than selected.
DTC P1124:00 TP sensor No. 1 out of self-test range
DETECTION CONDITION
  • During the KOEO/KOER self-test, the PCM monitors the TP sensor output voltage to determine if the TP1 and TP2 signals are less than the expected value. If either TP1 or TP2 is greater than the expected value, the DTC is stored.
POSSIBLE CAUSE
  • Accelerator pedal applied during KOEO/KOER self-test

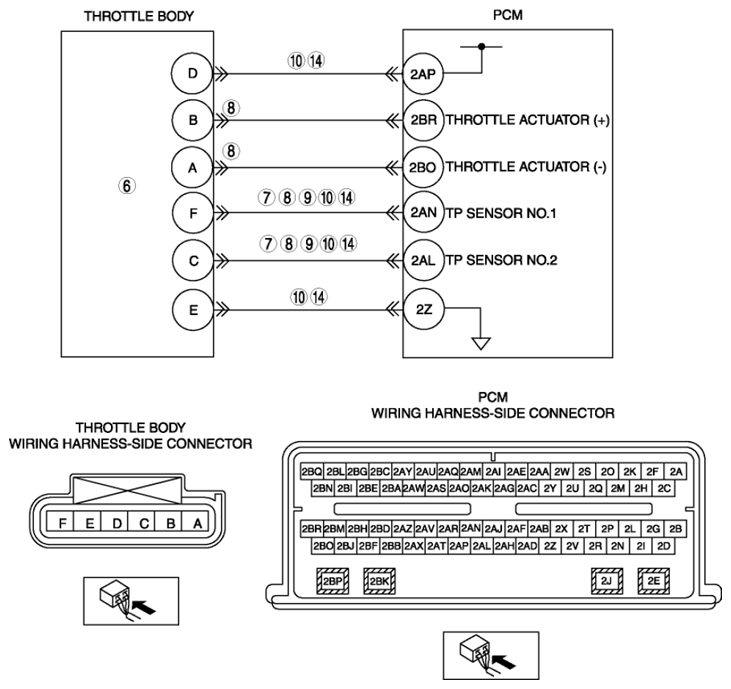

G08140172Courtesy of MAZDA MOTORS CORP.
