DTC P065B:00: Notes
WARNING: This page is about a different variant/trim than selected.

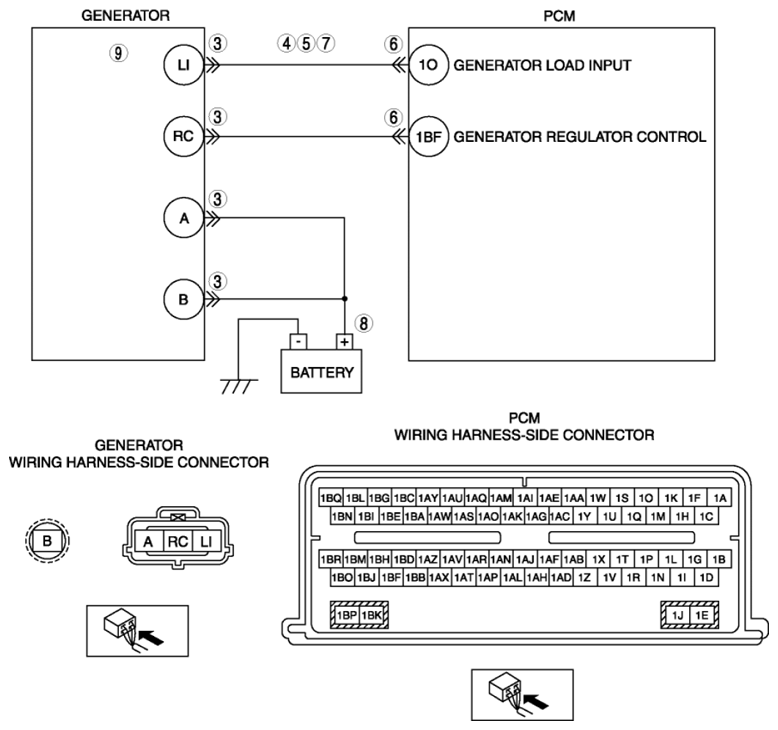

| DTC P065B:00 |
Generator control circuit range/performance |
| DETECTION CONDITION |
- The PCM reads the generator and sends a DTC through the network when the generator indicates a concern.
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction
- Short to power supply between generator terminal LI and PCM terminal 1O
- Short to ground between generator terminal LI and PCM terminal 1O
- Open circuit between generator terminal LI and PCM terminal 1O
- Generator malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
