DTC P0643:00: Notes

WARNING: This page is about a different variant/trim than selected.
DTC P0643:00 Sensor reference voltage circuit high
DETECTION CONDITION
  • Indicates the reference voltage circuit is higher than reference voltage maximum.
POSSIBLE CAUSE
  • Short to power supply between fuel tank pressure sensor terminal A and PCM terminal 1D
  • Connector or terminal malfunction
  • Fuel tank pressure sensor malfunction

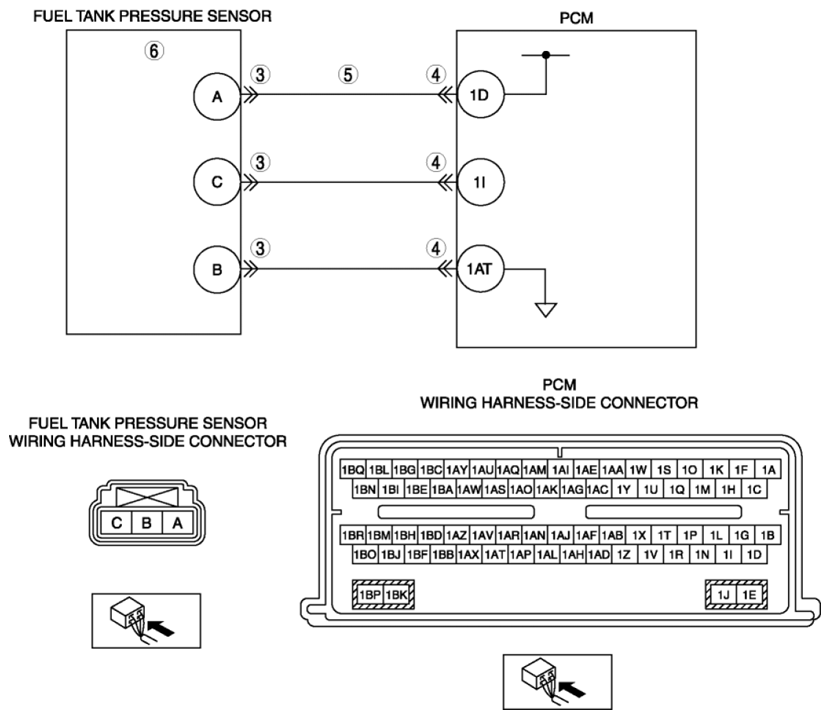

G08140167Courtesy of MAZDA MOTORS CORP.
