DTC P0642:00: Notes

WARNING: This page is about a different variant/trim than selected.

DTC P0642:00	Sensor reference voltage circuit low
DETECTION CONDITION	Indicates the reference voltage circuit is lower than reference voltage minimum.

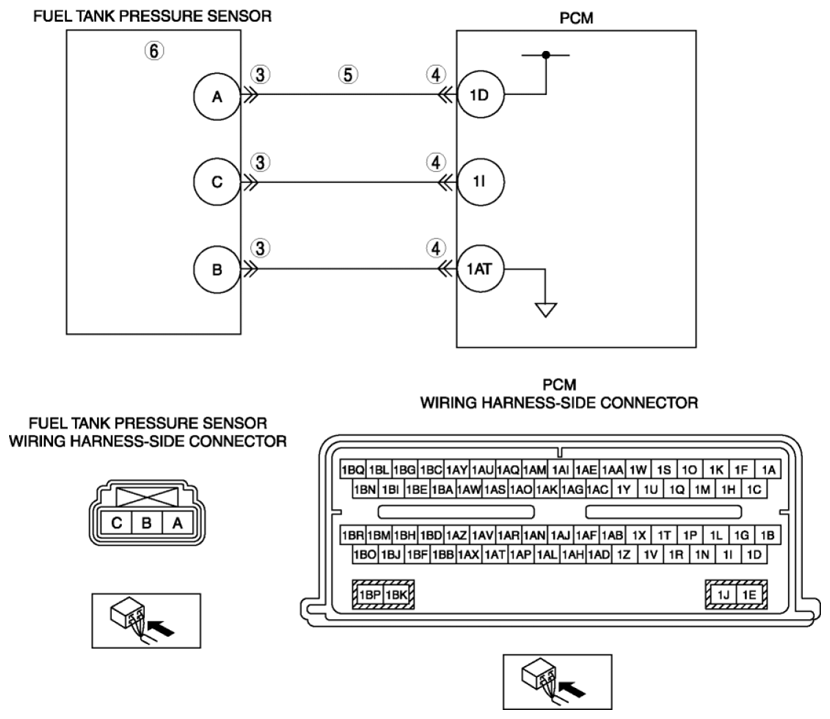

POSSIBLE CAUSE	Short to ground between fuel tank pressure sensor terminal A and PCM terminal 1D Connector or terminal malfunction Fuel tank pressure sensor malfunction
Courtesy of MAZDA MOTORS CORP.
