DTC P0626:00: Notes
WARNING: This page is about a different variant/trim than selected.
| DTC P0626:00 |
Generator field terminal circuit high |
| DETECTION CONDITION |
- The PCM monitors generator load from the generator/regulator in the form of frequency. The concern indicates the input is higher than the load should be in normal operation. The load input could be high when a battery short to ground exists.
|
| POSSIBLE CAUSE |

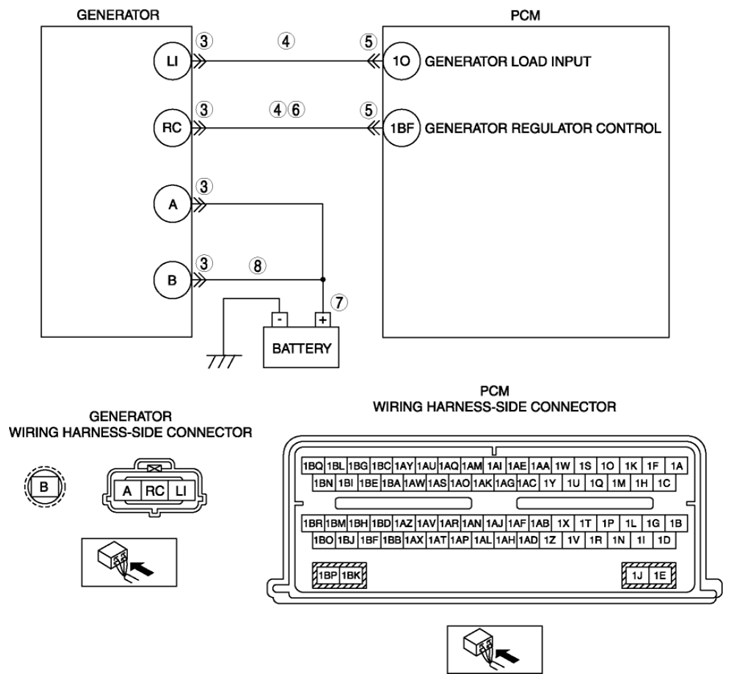

- Short to power supply between generator terminal RC and PCM terminal 1BF
- Short to power supply between generator terminal LI and PCM terminal 1O
- Open circuit in wiring harness between generator terminal RC and PCM terminal 1BF
- Connector or terminal malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
