DTC P0603:00: Notes

WARNING: This page is about a different variant/trim than selected.
DTC P0603:00 PCM keep alive memory (KAM) error
DETECTION CONDITION
  • Indicates the PCM has experienced an internal memory concern. However, there are external items that can cause this DTC.
POSSIBLE CAUSE
  • Battery terminal corrosion
  • Loose battery connection
  • Connector or terminal malfunction
  • Open circuit between battery positive terminal and PCM terminal 1V
  • Reprogramming

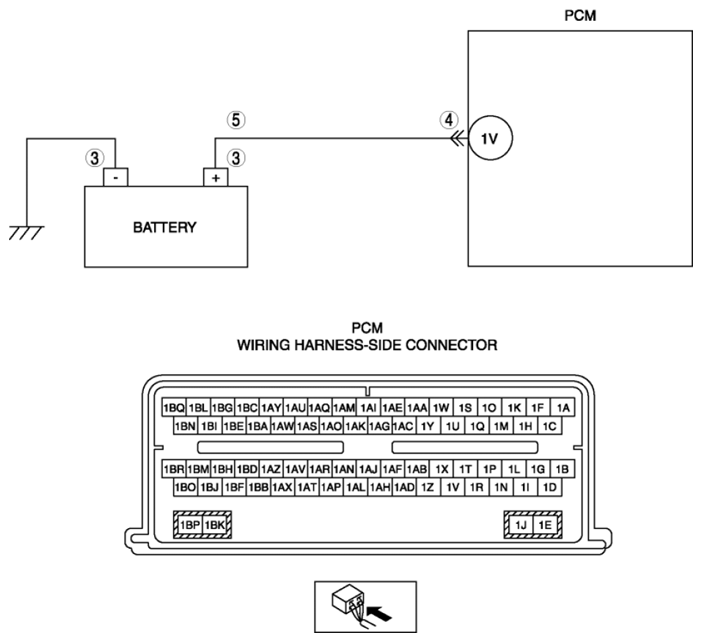

G08140162Courtesy of MAZDA MOTORS CORP.
