DTC P0581:00: Notes
WARNING: This page is about a different variant/trim than selected.
| DTC P0581:00 |
Cruise control multi-function input circuit high |
| DETECTION CONDITION |
- P0581:00 sets when the cruise control switch circuits are shorted to voltage or open.
|
| POSSIBLE CAUSE |
- Clock spring connector or terminals malfunction
- Clock spring malfunction
- Cruise control switch malfunction
- PCM connector or terminals malfunction

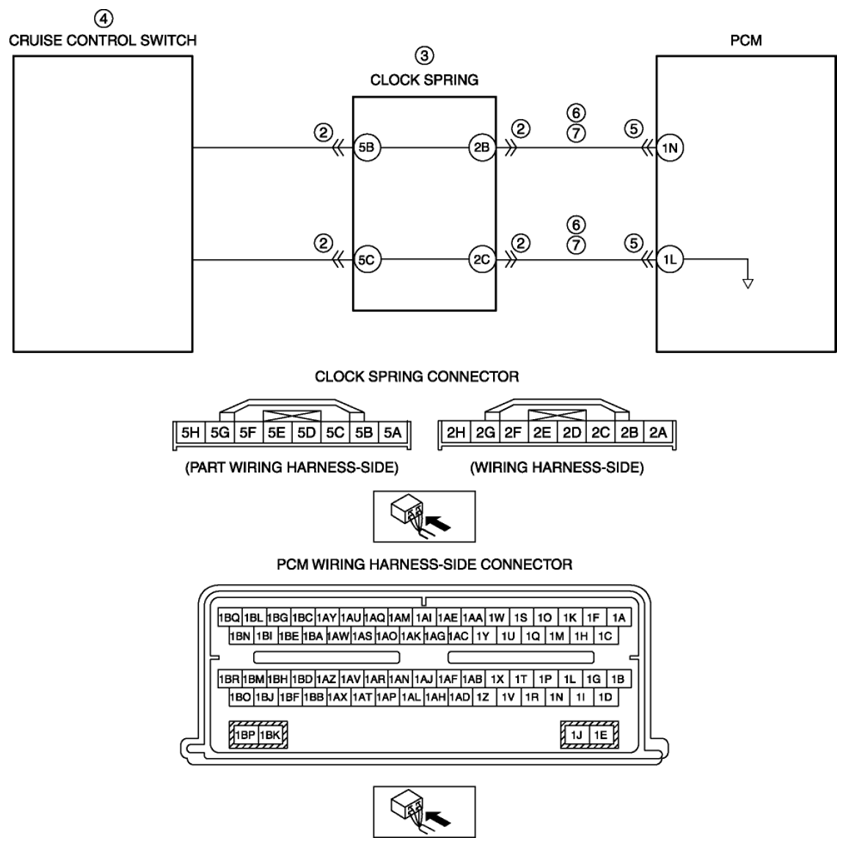

- Short to power supply in wiring harness between the following terminals:
- Clock spring terminal 2B-PCM terminal 1N
- Clock spring terminal 2C-PCM terminal 1L
- Open circuit in wiring harness between the following terminals:
- Clock spring terminal 2B-PCM terminal 1N
- Clock spring terminal 2C-PCM terminal 1L
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
