| DTC P0579:00 |
Cruise control multi-function input circuit range/performance |
| DETECTION CONDITION |
- P0579:00 may set when the cruise control switch circuits are open, shorted to voltage or ground.
|
| POSSIBLE CAUSE |
- Clock spring connector or terminals malfunction
- Clock spring malfunction
- Cruise control switch malfunction

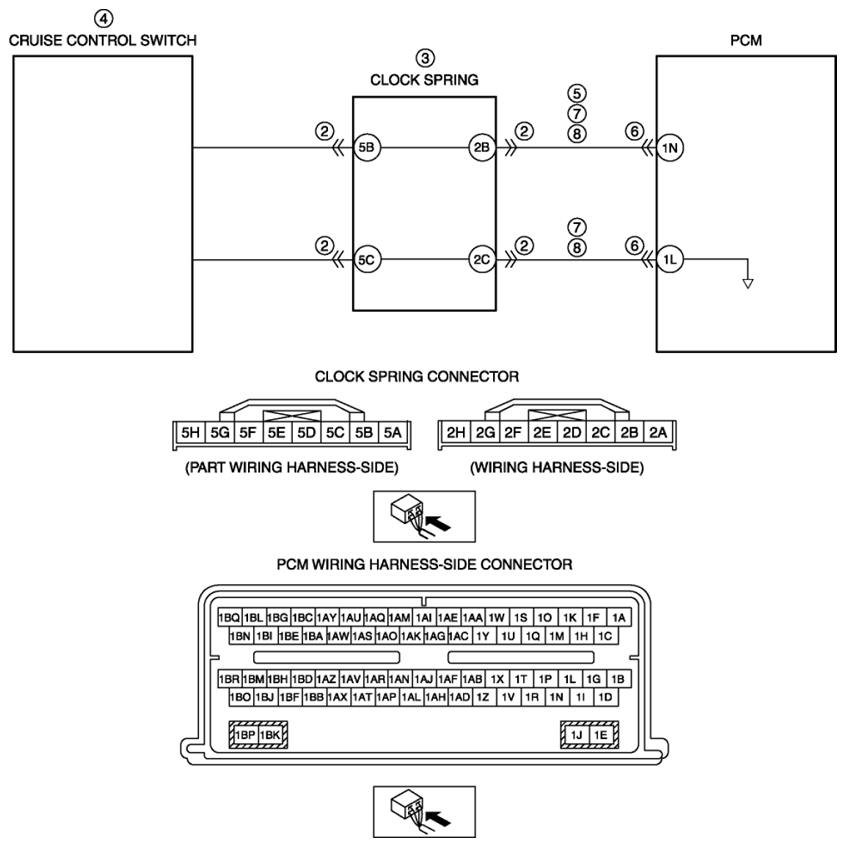

- Short to ground in wiring harness between clock spring terminal 2B and PCM terminal 1N
- PCM connector or terminals malfunction
- Short to power supply in wiring harness between the following terminals:
- Clock spring terminal 2B-PCM terminal 1N
- Clock spring terminal 2C-PCM terminal 1L
- Open circuit in wiring harness between the following terminals:
- Clock spring terminal 2B-PCM terminal 1N
- Clock spring terminal 2C-PCM terminal 1L
- PCM malfunction
|
