DTC P0532:00: Notes
WARNING: This page is about a different variant/trim than selected.
| DTC P0532:00 |
Refrigerant pressure sensor circuit low input |
| DETECTION CONDITION |
- A DTC is stored if the refrigerant pressure sensor output voltage is below the calibrated level.
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction

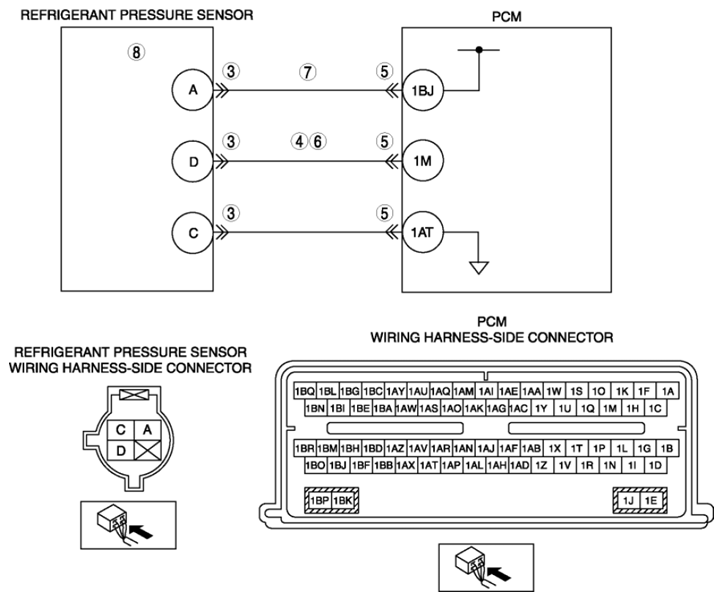

- Short to ground circuit between refrigerant pressure sensor terminal D and PCM terminal 1M
- Open circuit between refrigerant pressure sensor terminal D and PCM terminal 1M
- Open circuit between refrigerant pressure sensor terminal A and PCM terminal 1BJ
- Refrigerant pressure sensor malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
