DTC P0453:00: Notes
WARNING: This page is about a different variant/trim than selected.
| DTC P0453:00 |
Fuel tank pressure sensor high input |
| DETECTION CONDITION |
- The PCM monitors the evaporative emission (EVAP) control system fuel tank pressure sensor input signal to the PCM. The test fails when the signal average jumps above a minimum allowable calibrated parameter.
|

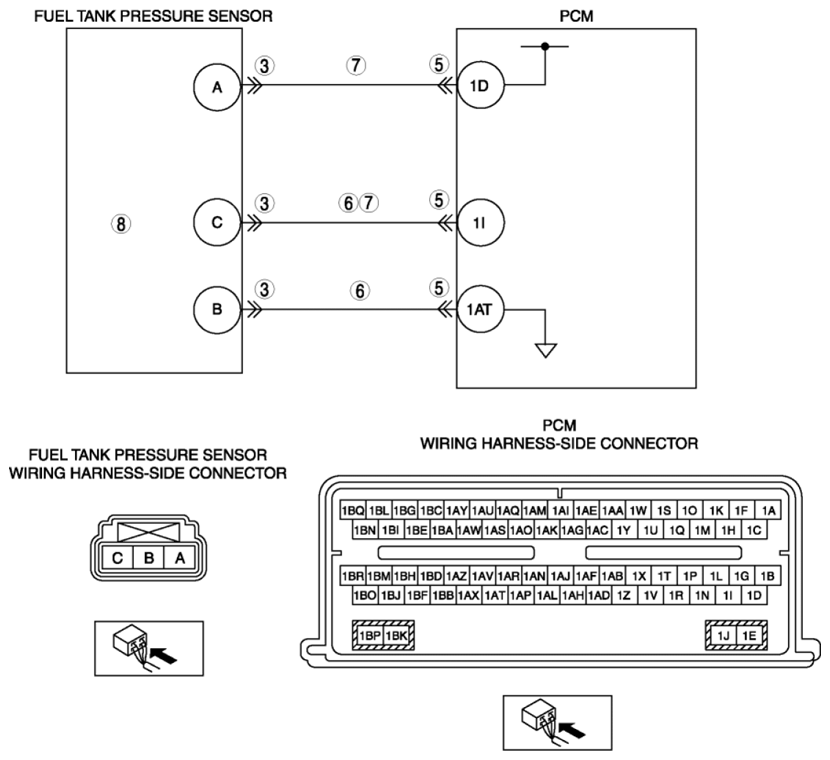

| POSSIBLE CAUSE |
- Connector or terminal malfunction
- Short to the constant voltage supply circuit between fuel tank pressure sensor terminal C and PCM terminal 1I
- Short to power supply between fuel tank pressure sensor terminal A and PCM terminal 1D
- Open circuit between fuel tank pressure sensor terminal C and PCM terminal 1I
- Open circuit between fuel tank pressure sensor terminal B and PCM terminal 1AT
- Fuel tank pressure sensor power circuit and signal circuit are shorted each other
- Fuel tank pressure sensor malfunction
|
