DTC P0443:00: Notes
WARNING: This page is about a different variant/trim than selected.
| DTC P0443:00 |
Purge solenoid valve circuit |
| DETECTION CONDITION |
- The PCM monitors the state of the purge solenoid valve circuit output driver. The test fails when the signal moves outside the minimum or maximum limit for the commanded state.
|
| POSSIBLE CAUSE |
- Purge solenoid valve malfunction
- Connector or terminal malfunction

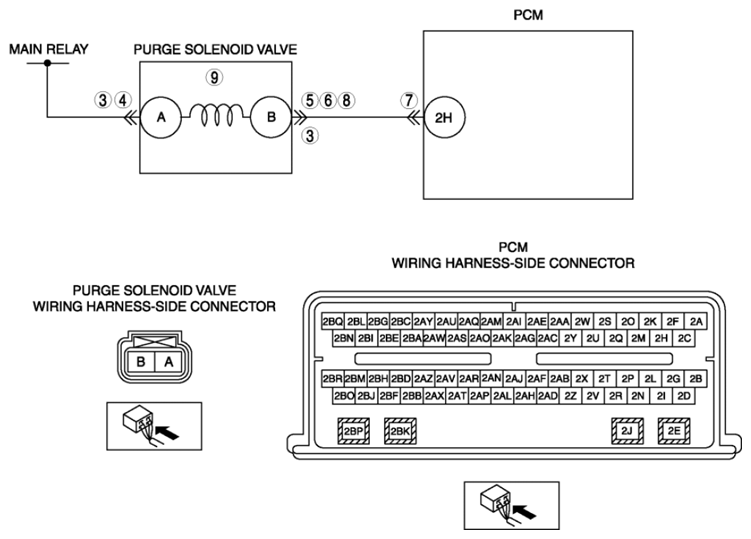

- Short to ground between purge solenoid valve terminal B and PCM terminal 2H
- Open circuit between main relay terminal A and purge solenoid valve terminal A
- Short to power supply between purge solenoid valve terminal B and PCM terminal 2H
- Open circuit between purge solenoid valve terminal B and PCM terminal 2H
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
