DTC P0325:00: Notes
WARNING: This page is about a different variant/trim than selected.

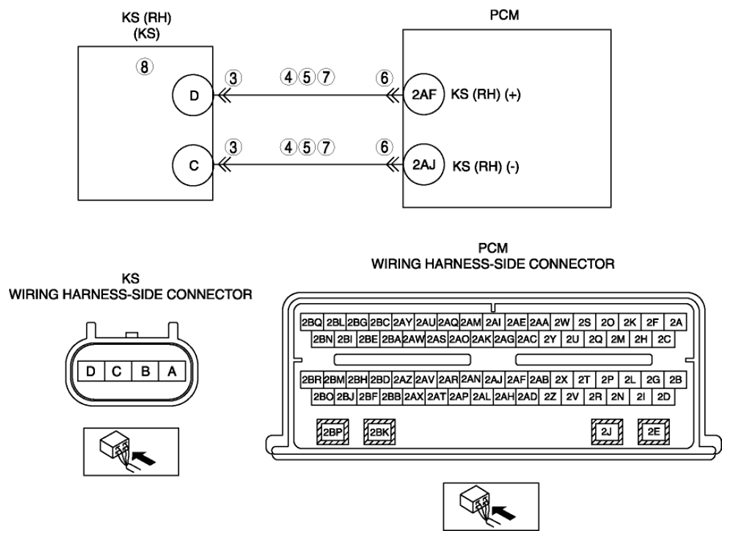

| DTC P0325:00 |
KS circuit (RH) |
| DETECTION CONDITION |
- The KS detects vibrations upon increase and decrease in engine RPM. The KS generates a voltage based on this vibration. A DTC is set if the voltage goes outside a calibrated level.
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction
- Short to power supply in wiring harness between KS terminal C and PCM terminal 2AJ
- Short to power supply in wiring harness between KS terminal D and PCM terminal 2AF
- Short to ground circuit between KS terminal C and PCM terminal 2AJ
- Short to ground circuit between KS terminal D and PCM terminal 2AF
- Open circuit wiring harness between KS terminal C and PCM terminal 2AJ
- Open circuit wiring harness between KS terminal D and PCM terminal 2AF
- KS malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
