| DTC P0231:00 |
Fuel pump secondary circuit low |
| DETECTION CONDITION |
- The powertrain control module (PCM) monitors the fuel pump monitor (FPM) circuit. The test fails if the PCM commands the fuel pump ON and B+ voltage is not detected on the FPM circuit.
|
| POSSIBLE CAUSE |
- Open B+ circuit to the fuel pump relay terminal D
- Open FP PWR circuit between the fuel pump relay terminal C and its connection to the PCM terminal 1H
- Damaged fuel pump relay
- PCM malfunction
|

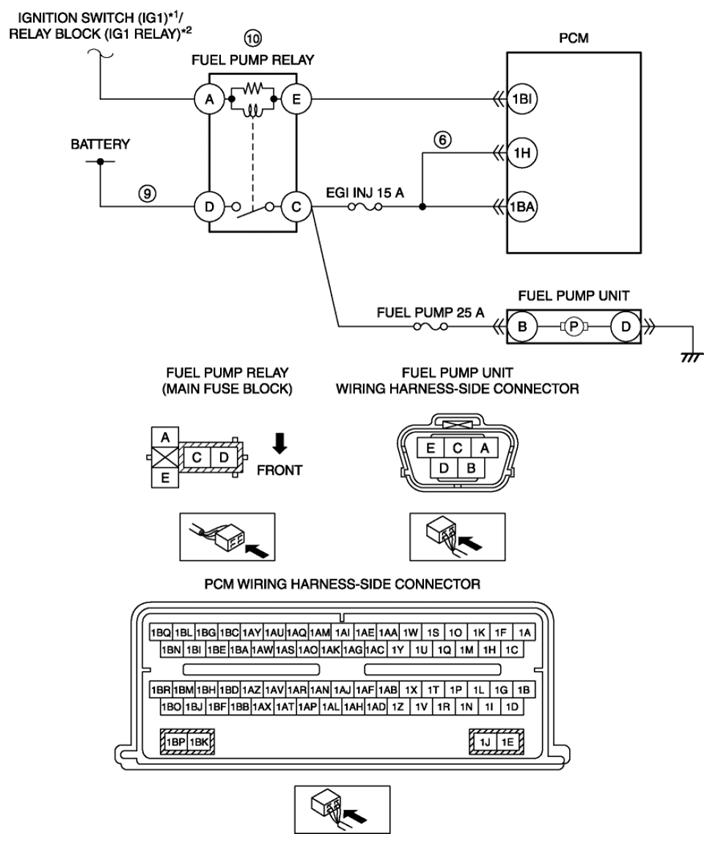

 Courtesy of MAZDA MOTORS CORP.
|
*1Vehicles without advanced keyless entry and push button start system
*2Vehicles with advanced keyless entry and push button start system |
