DTC P0223:00: Notes

WARNING: This page is about a different variant/trim than selected.

DTC P0223:00	TP sensor No. 2 circuit high input
DETECTION CONDITION	The TP sensor No. 2 circuit was flagged as a concern by the PCM indicating a high voltage.

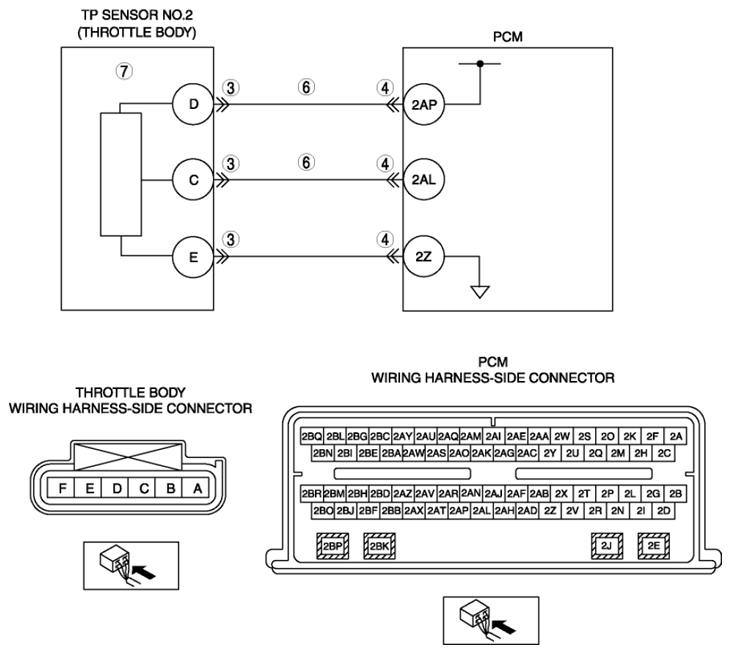

POSSIBLE CAUSE	Connector or terminal malfunction Open circuit wiring harness between throttle body terminal C and PCM terminal 2AL TP sensor No. 2 malfunction TP sensor signal circuits are shorted each other
Courtesy of MAZDA MOTORS CORP.
