DTC P0222:00: Notes
WARNING: This page is about a different variant/trim than selected.
| DTC P0222:00 |
TP sensor No. 2 circuit low input |
| DETECTION CONDITION |
- The TP sensor No. 2 circuit was flagged as a concern by the PCM indicating a low voltage or open circuit.
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction

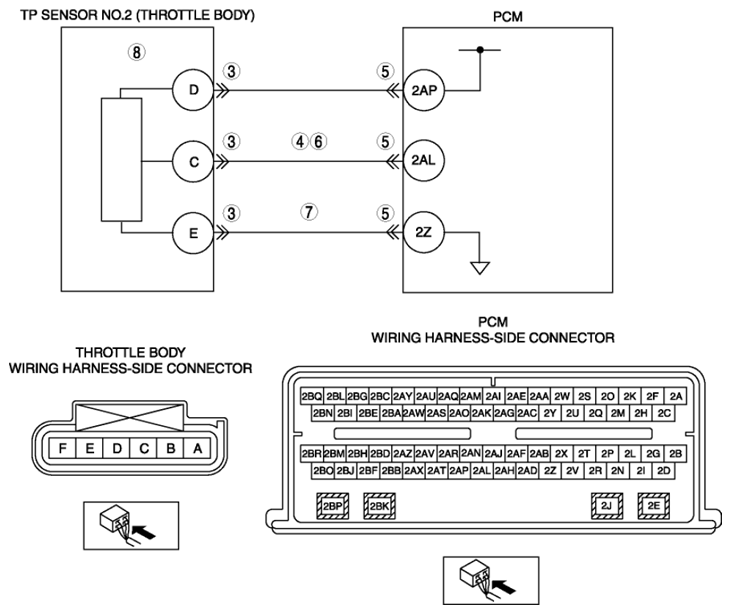

- Short to ground circuit between throttle body terminal C and PCM terminal 2AL
- Open circuit between throttle body terminal C and PCM terminal 2AL
- Open circuit between throttle body terminal E and PCM terminal 2Z
- TP sensor No. 2 malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
