DTC P0206:00: Notes
WARNING: This page is about a different variant/trim than selected.
| DTC P0206:00 |
Injector circuit/open-cylinder No. 6 |
| DETECTION CONDITION |
- The CCM monitors the operation of the fuel injector drivers in the PCM. The test fails if the fuel injector circuitry is inoperative.
|
| POSSIBLE CAUSE |
- Fuel injector No. 6 connector or terminal malfunction
- PCM connector or terminal malfunction

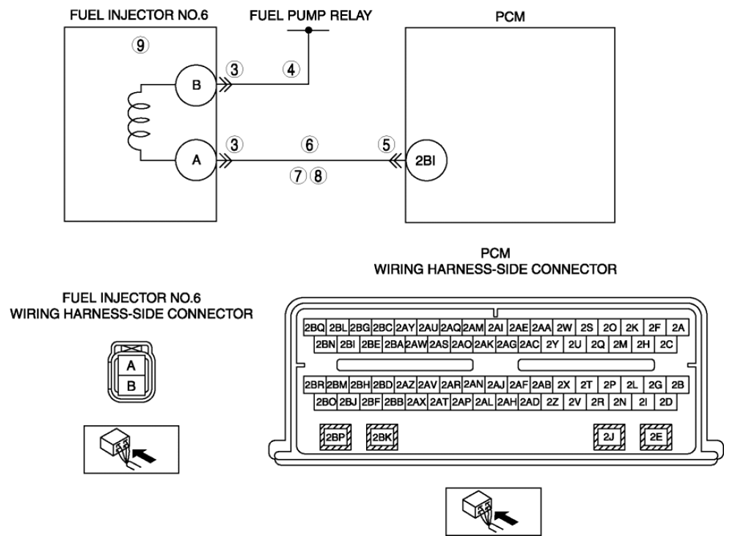

- Open circuit between fuel pump relay and fuel injector No. 6 terminal B
- Open circuit between fuel injector No. 6 terminal A and PCM terminal 2BI
- Short to ground between fuel injector No. 6 terminal A and PCM terminal 2BI
- Short to power supply between fuel injector No. 6 terminal A and PCM terminal 2BI
- Fuel injector No. 6 malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
