DTC P0203:00: Notes
WARNING: This page is about a different variant/trim than selected.
| DTC P0203:00 |
Injector circuit/open-cylinder No. 3 |
| DETECTION CONDITION |
- The CCM monitors the operation of the fuel injector drivers in the PCM. The test fails if the fuel injector circuitry is inoperative.
|
| POSSIBLE CAUSE |

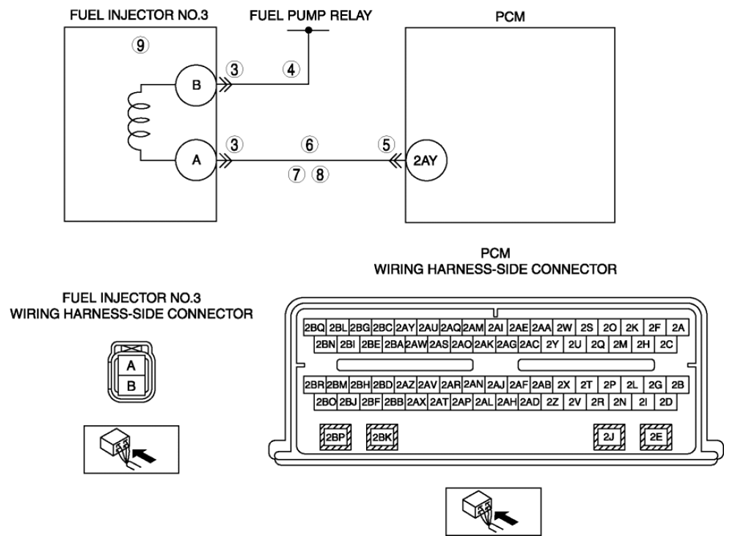

- Fuel injector No. 3 connector or terminal malfunction
- PCM connector or terminal malfunction
- Open circuit between fuel pump relay and fuel injector No. 3 terminal B
- Open circuit between fuel injector No. 3 terminal A and PCM terminal 2AY
- Short to ground between fuel injector No. 3 terminal A and PCM terminal 2AY
- Short to power supply between fuel injector No. 3 terminal A and PCM terminal 2AY
- Fuel injector No. 3 malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
