DTC P0201:00: Notes
WARNING: This page is about a different variant/trim than selected.
| DTC P0201:00 |
Injector circuit/open-cylinder No. 1 |
| DETECTION CONDITION |
- The CCM monitors the operation of the fuel injector drivers in the PCM. The test fails if the fuel injector circuitry is inoperative.
|

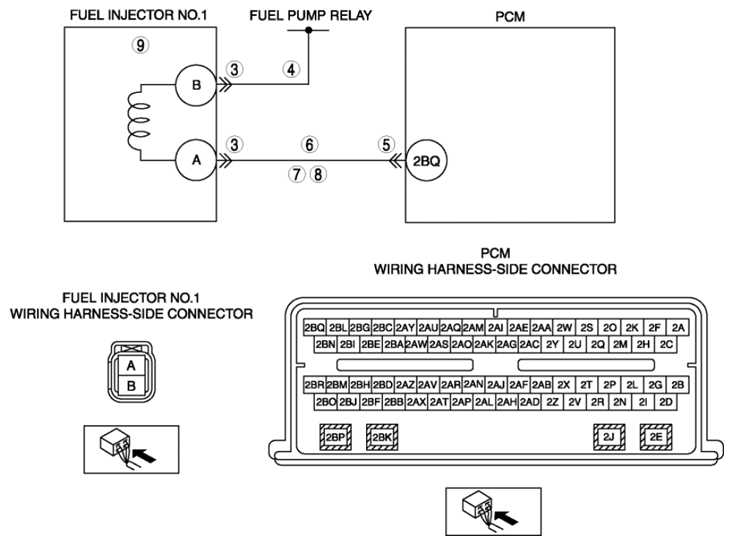

| POSSIBLE CAUSE |
- Fuel injector No. 1 connector or terminal malfunction
- PCM connector or terminal malfunction
- Open circuit between fuel pump relay and fuel injector No. 1 terminal B
- Open circuit between fuel injector No. 1 terminal A and PCM terminal 2BQ
- Short to ground between fuel injector No. 1 terminal A and PCM terminal 2BQ
- Short to power supply between fuel injector No. 1 terminal A and PCM terminal 2BQ
- Fuel injector No. 1 malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
