DTC P0123:00: Notes

WARNING: This page is about a different variant/trim than selected.
DTC P0123:00 TP sensor No. 1 circuit high input
DETECTION CONDITION
  • The TP sensor No. 1 circuit was flagged as a concern by the PCM indicating a high voltage.
POSSIBLE CAUSE
  • Connector or terminal malfunction
  • Short to constant voltage supply circuit between throttle body terminal F and PCM terminal 2AN
  • TP sensor signal circuits are shorted each other
  • TP sensor No. 1 malfunction

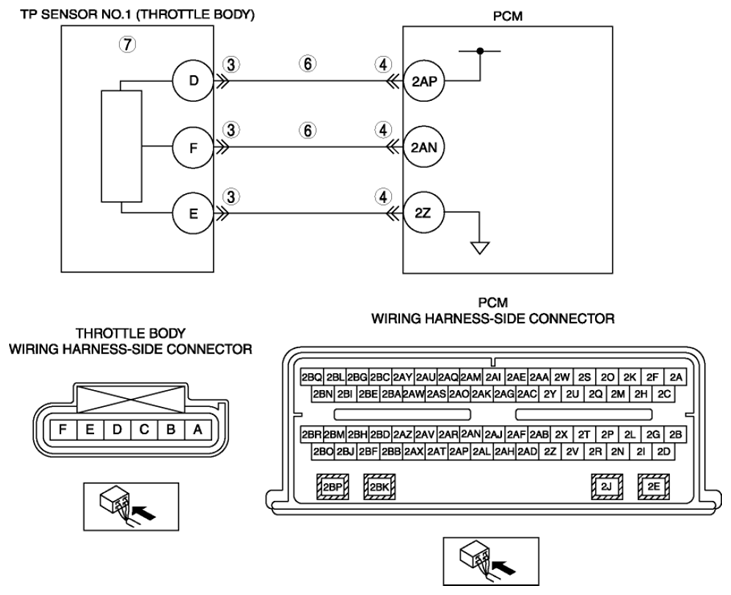

G08140108Courtesy of MAZDA MOTORS CORP.
