| DTC P0122:00 |
TP sensor No. 1 circuit low input |
| DETECTION CONDITION |
- The TP sensor No. 1 circuit was flagged as a concern by the PCM indicating a low voltage or open circuit.
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction

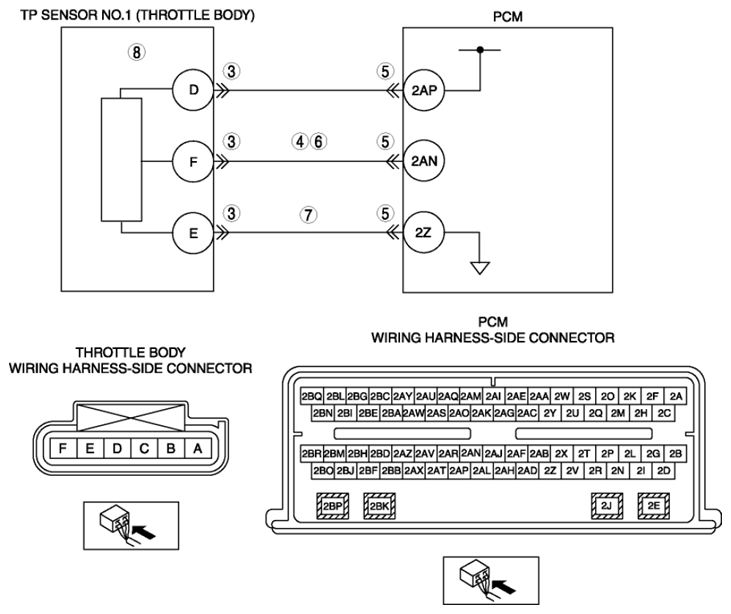

- Short to ground circuit between throttle body terminal F and PCM terminal 2AN
- Open circuit between throttle body terminal F and PCM terminal 2AN
- Open circuit between throttle body terminal E and PCM terminal 2Z
- TP sensor No. 1 malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
