DTC P0113:00: Notes
WARNING: This page is about a different variant/trim than selected.
| DTC P0113:00 |
IAT sensor circuit high input |
| DETECTION CONDITION |
- Indicates the sensor signal is more than the self-test maximum. The IAT sensor maximum is 4.6 V or -50 °C {-58 °F}
.
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction
- IAT sensor malfunction

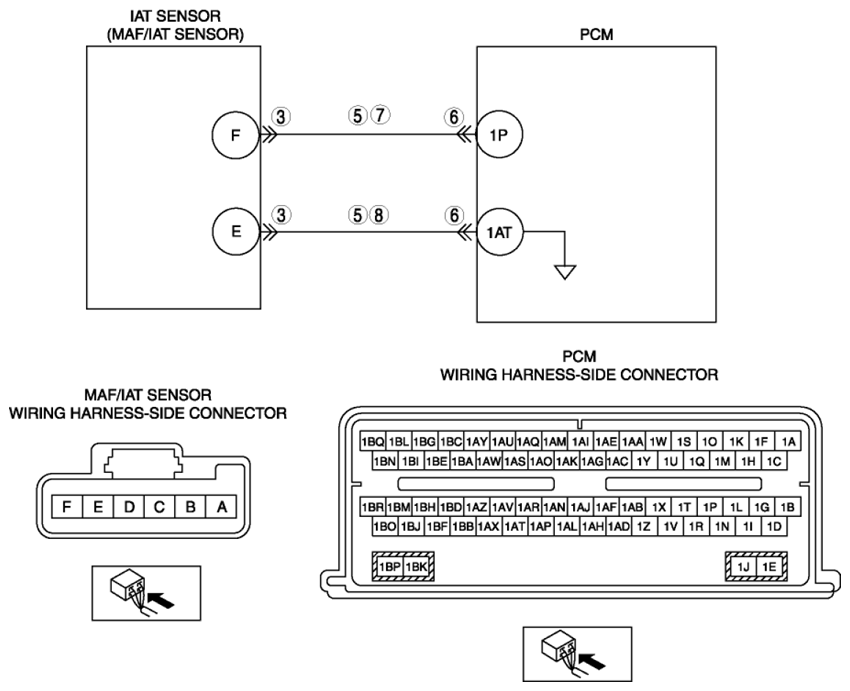

- Short to power supply between MAF/IAT sensor terminal F and PCM terminal 1P
- Open circuit between MAF/IAT sensor terminal F and PCM terminal 1P
- Open circuit between MAF/IAT sensor terminal E and PCM terminal 1AT
|
 Courtesy of MAZDA MOTORS CORP.
|
