DTC P0102:00: Notes

WARNING: This page is about a different variant/trim than selected.
DTC P0102:00 MAF circuit low input
DETECTION CONDITION
  • The MAF sensor circuit is monitored by the PCM for low air flow (or voltage) input through the CCM. If during KOER the air flow (or voltage) changes below a minimum calibrated limit, the test fails.
POSSIBLE CAUSE
  • Connector or terminal malfunction
  • Open circuit wiring harness between MAF sensor terminal A and main relay terminal A
  • Open circuit wiring harness between MAF sensor terminal C and PCM terminal 1AN
  • Open circuit wiring harness between MAF sensor terminal D and PCM terminal 1AR
  • Short to ground circuit between MAF sensor terminal D and PCM terminal 1AR
  • Open circuit wiring harness between MAF sensor terminal B and body ground
  • Intake air leak (near the MAF sensor)
  • A closed throttle indication
  • MAF sensor malfunction

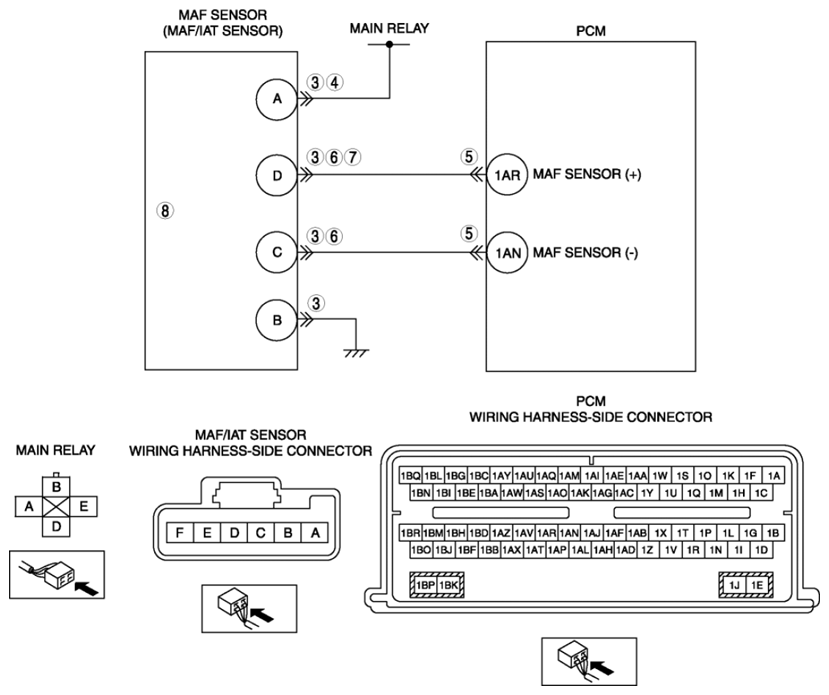

G08140102Courtesy of MAZDA MOTORS CORP.
