Section 19 (On-Board Diagnostic [Engine Controls MZI 3.7] (1 Of 5))
>>
On-Board Diagnostic Wiring Diagram
On-Board Diagnostic Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

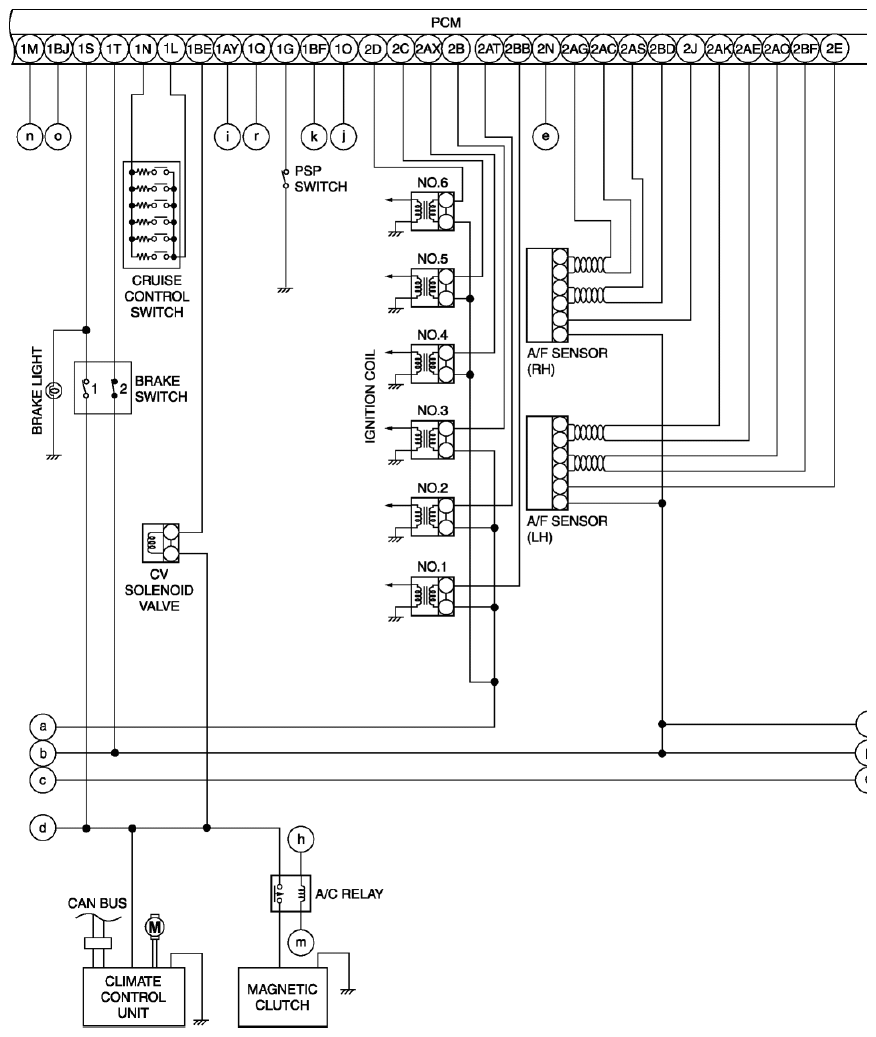

Fig 1: On-Board Diagnostic Wiring Diagram - MZI 3.7 V6 (1 Of 3)
Courtesy of MAZDA MOTORS CORP.

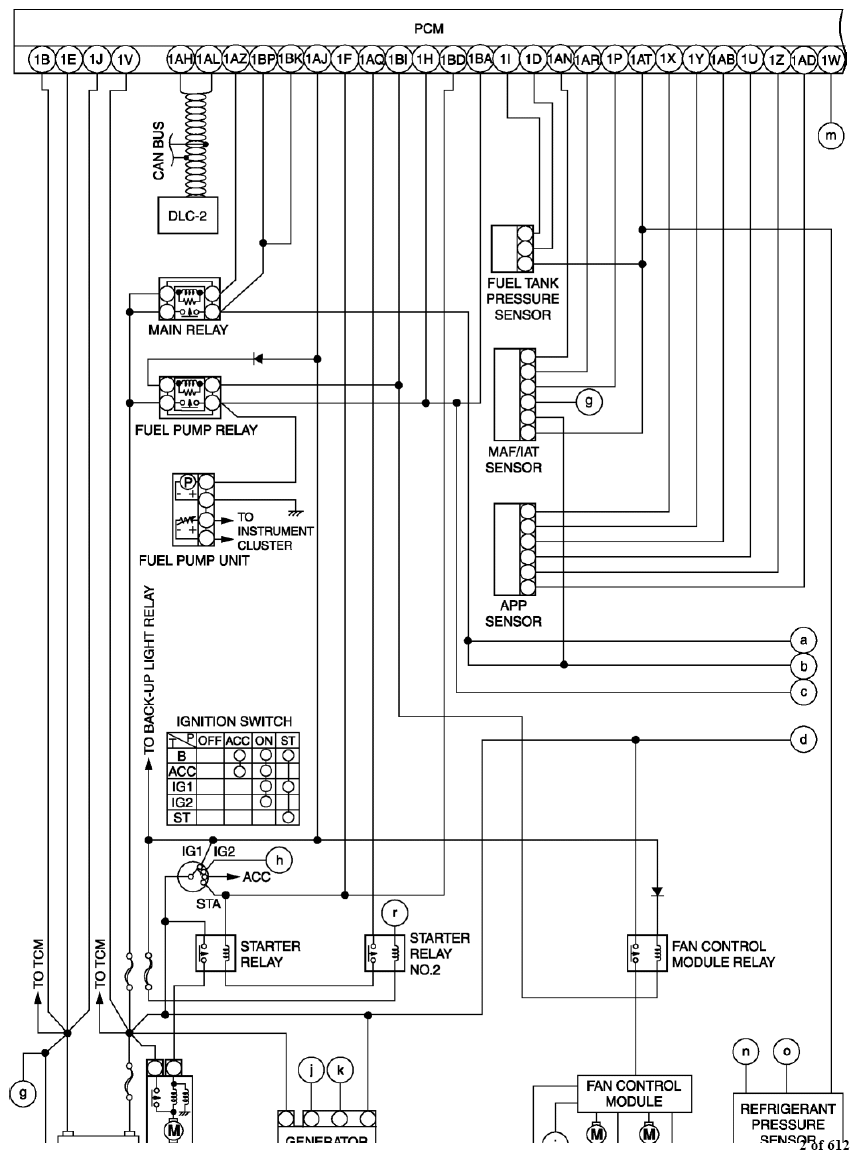

Fig 2: On-Board Diagnostic Wiring Diagram - MZI 3.7 V6 (2 Of 3)
Courtesy of MAZDA MOTORS CORP.

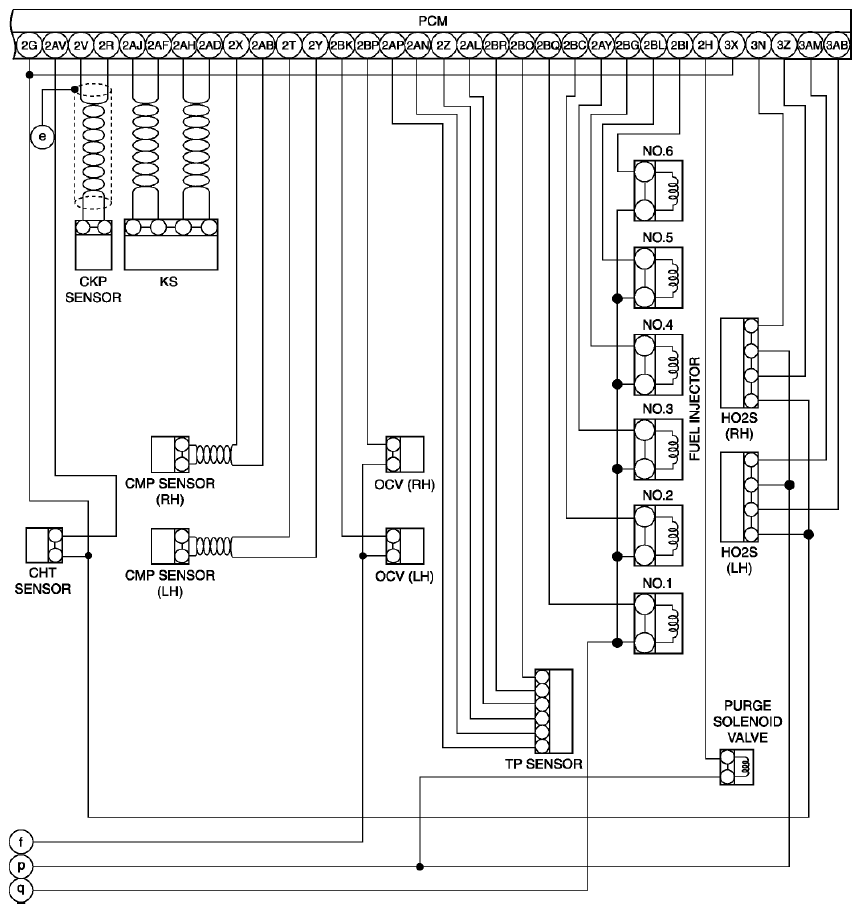

Fig 3: On-Board Diagnostic Wiring Diagram - MZI 3.7 V6 (3 Of 3)
Courtesy of MAZDA MOTORS CORP.
