Pending Trouble Code Access Procedure

WARNING: This page is about a different variant/trim than selected.

Connect the M-MDS (IDS) to the DLC-2.

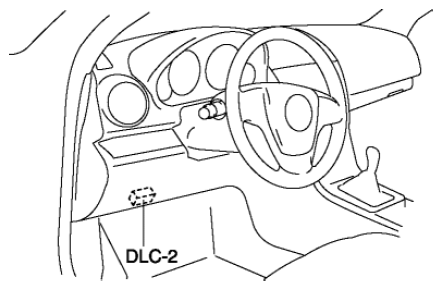

Fig 1: Identifying DLC-2
Courtesy of MAZDA MOTORS CORP.
After the vehicle is identified, select the following items from the initialization screen of the IDS.
1. Select "Self Test".
2. Select "Modules".
3. Select "PCM".
Then, select the "Retrieve CMDTCs" and perform procedures according to directions on the IDS screen.
Retrieve the pending trouble codes according to the directions on the IDS screen.
