On-Board System Readiness Tests Access Procedure

WARNING: This page is about a different variant/trim than selected.

Connect the M-MDS (IDS) to the DLC-2.

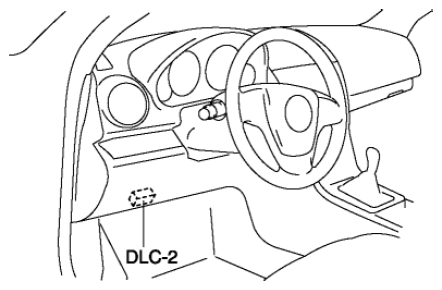

Fig 1: Identifying DLC-2
Courtesy of MAZDA MOTORS CORP.
After the vehicle is identified, select the following items from the initialization screen of the IDS.
1. Select "Powertrain".
2. Select "OBD Test Modes".
3. Select "Mode 1 Powertrain Data".
4. Select "PCM".
Then, select the "***SUP" and "**EVAL" PIDs in the PID selection screen.
Monitor those PIDs and check it system monitor is completed.
NOTE:
- If the on-board system readiness tests are not completed the PCM stores DTC P1000.
