Diagnostic Monitoring Test Results Access Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Connect the M-MDS (IDS) to the DLC-2.

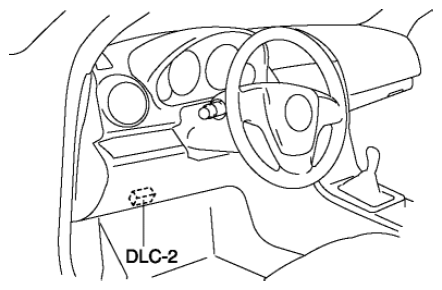

    Fig 1: Identifying DLC-2
    G08140093Courtesy of MAZDA MOTORS CORP.
  2. After the vehicle is identified, select the following items from the initialization screen of the IDS.
    1. Select "Powertrain".
    2. Select "OBD Test Modes".
    3. Select "Mode 6 On-Board Test Results".
  3. Verify the diagnostic monitoring test result according to the directions on the IDS screen.
