KOEO Self Test

WARNING: This page is about a different variant/trim than selected.

Connect the M-MDS (IDS) to the DLC-2.

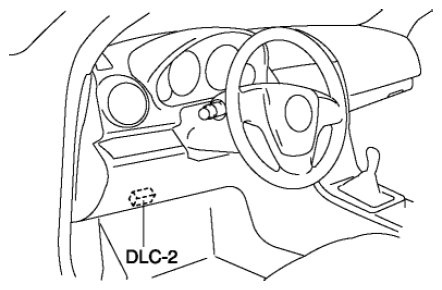

Fig 1: Identifying DLC-2
Courtesy of MAZDA MOTORS CORP.
After the vehicle is identified, select the following items from the initialization screen of the IDS.
1. Select "Self Test".
2. Select "Modules".
3. Select "PCM".
Then, select the "KOEO On Demand Self Test" and perform procedures according to directions on the IDS screen.
Verify the DTC according to the directions on the IDS screen.
- If any DTCs are displayed, perform troubleshooting according to the corresponding DTC inspection.
After completion of repairs, clear all DTCs stored in the PCM, while referring to "AFTER REPAIR PROCEDURE ".
