Exhaust System Insulator Removal/Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the exhaust system insulator in the order shown in the figure.
  2. Install in the reverse order of removal.

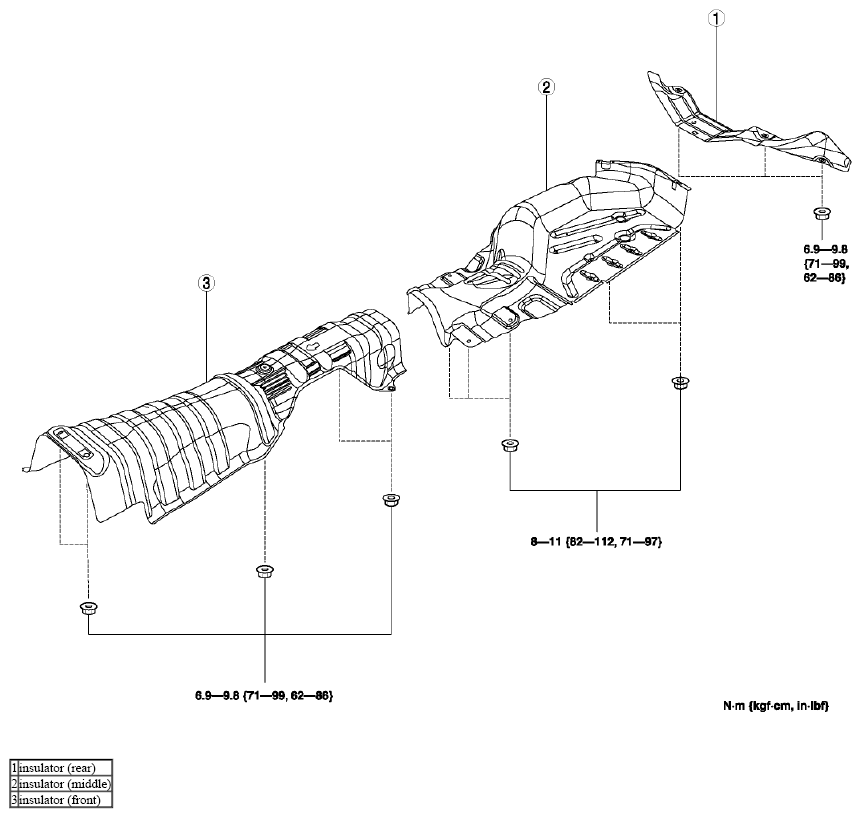

    Fig 1: Identifying Exhaust System Insulator Removal Order
    G08140599
