Exhaust Manifold (LH) Installation Note
WARNING: This page is about a different variant/trim than selected.

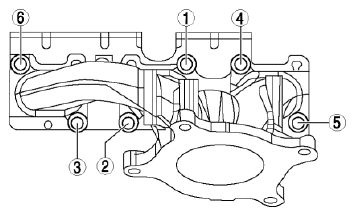

- Tighten the exhaust manifold (RH) installation nuts in the order shown in the figure.
Tightening torque
- 22-28 N.m {2.3-2.8 kgf.m, 17-20 ft.lbf}
