Off-Vehicle Inspection
WARNING: This page is about a different variant/trim than selected.

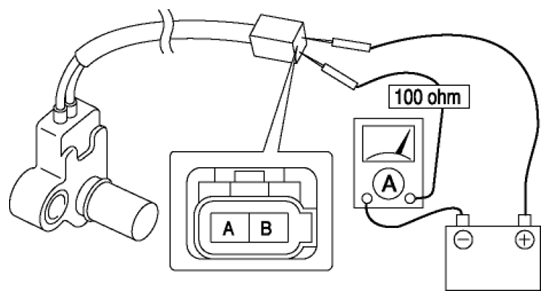

- Connect the VSS terminal 2 to the battery positive terminal, connect the battery negative terminal to VSS terminal 1 through an ammeter set to a resistance of 100 ohm
.
NOTE:
- Inspect with a tester that can indicate more than 10 megohms and confirm that the value is more than 1 megohm .

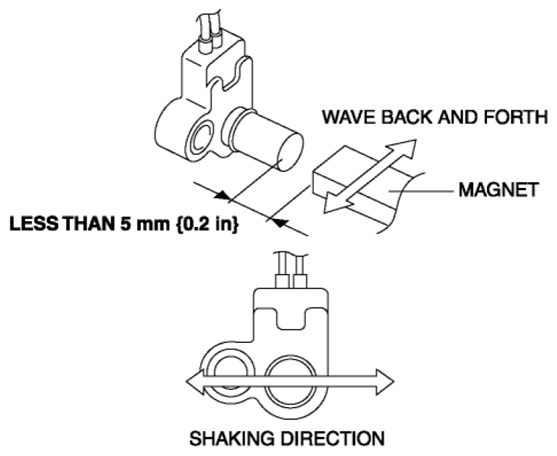

- Measure the current while waving a magnet back and forth over the top of the VSS (less than 5 mm {0.2 in}
).
- If there is any malfunction, replace the VSS.
VSS SPECIFICATIONSignal Current (mA) High 12.0-16.0 Low 4.0-8.0
