Up Switch Inspection
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.
- Do not damage the terminals.
- Disconnect the selector lever component connector.
- Disconnect the negative battery cable.
- Remove the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION .)

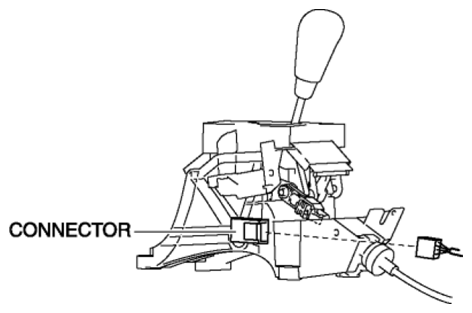

- Disconnect the selector lever component connector.
- Measure the continuity between selector lever component terminals B and H.
- If there is any malfunction, replace the selector lever component. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
UP SWITCH SPECIFICATIONTest condition Continuity M (+) Continuity Except M (+) No continuity
