Off-Vehicle Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Place the TFT sensor and a thermometer in ATF as shown in the figure, and heat the ATF gradually.

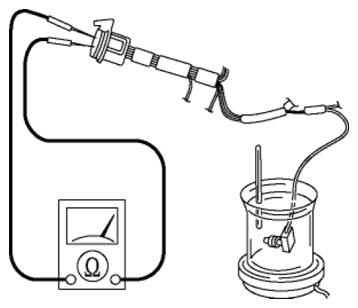

    Fig 1: Placing TFT Sensor And Thermometer In ATF
    G08142912
    WARNING:
    • A hot ATF and beaker can cause severe burns. Do not touch them.
  2. Measure the resistance between coupler component terminals B7 and B8.

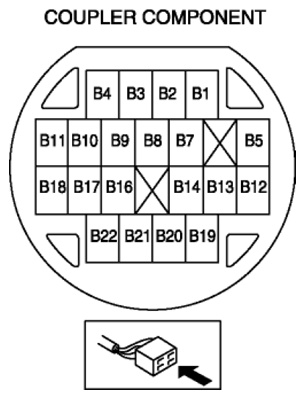

    Fig 2: Identifying Coupler Component Connector Terminals
    G08142913
    • If there is any malfunction, replace the coupler component.
    TFT SENSOR SPECIFICATION

    ATF temperature (°C {°F}) Resistance (kilohm)
    10 {50} 5.62-7.31
    25 {77} Approx. 3.5
    110 {230} 0.22-0.27
