On-Vehicle Inspection
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery cable.
- Remove the fresh-air duct and air cleaner component as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)

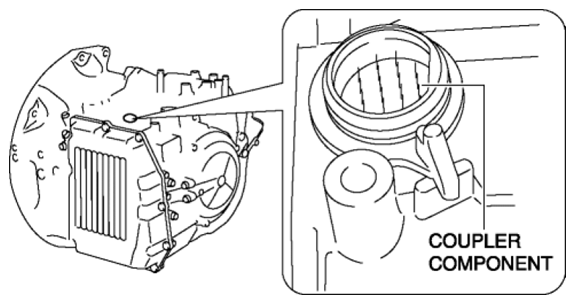

- Remove the TCM. (See TCM REMOVAL/INSTALLATION .)

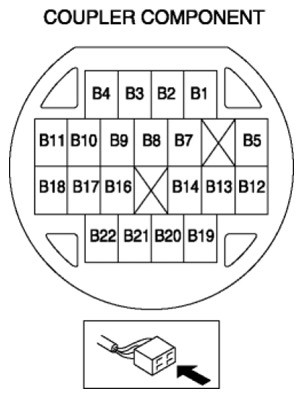

- Measure the resistance between coupler component terminals B16 and B21.
- If there is any malfunction, inspect the coupler component for continuity. (See COUPLER COMPONENT INSPECTION .)
- If coupler component has no malfunction, perform the "Off-vehicle inspection". (See OFF-VEHICLE INSPECTION .)
SHIFT SOLENOID F SPECIFICATION
| ATF temperature (°C {°F}) | Resistance (ohm) |
|---|---|
| 20 {68} | 5.0-5.6 |
