Resistance inspection
WARNING: This page is about a different variant/trim than selected.

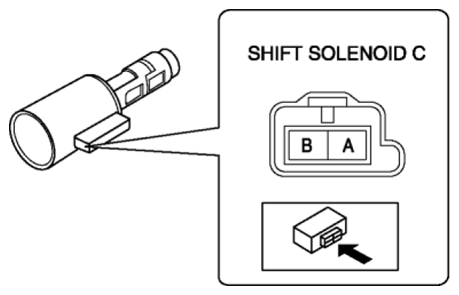

- Measure the resistance shift solenoid C terminals A and B.
- If there is any malfunction, replace the control valve body.
SHIFT SOLENOID C SPECIFICATION
| Ambient temperature (°C {°F}) |
Resistance (ohm) |
| 20 {68} |
5.0-5.6 |
