Operation inspection
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- Do not apply battery positive voltage to terminals for more than 3 s.
NOTE:
- Because the operation sound of the shift solenoid C is small, perform inspection in a quiet place.

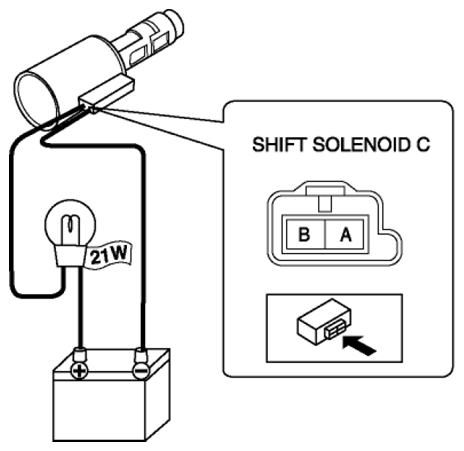

- Connect the positive battery terminal to terminal B of shift solenoid C via the 12-21 W
bulb and connect the negative battery terminal to terminal A of shift solenoid C.
CAUTION:
- Do not apply impact to shift solenoid C.
- Do not damage the terminals.
- Verify that operating sound is heard from the shift solenoid C.
- If there is any malfunction, replace the control valve body.
